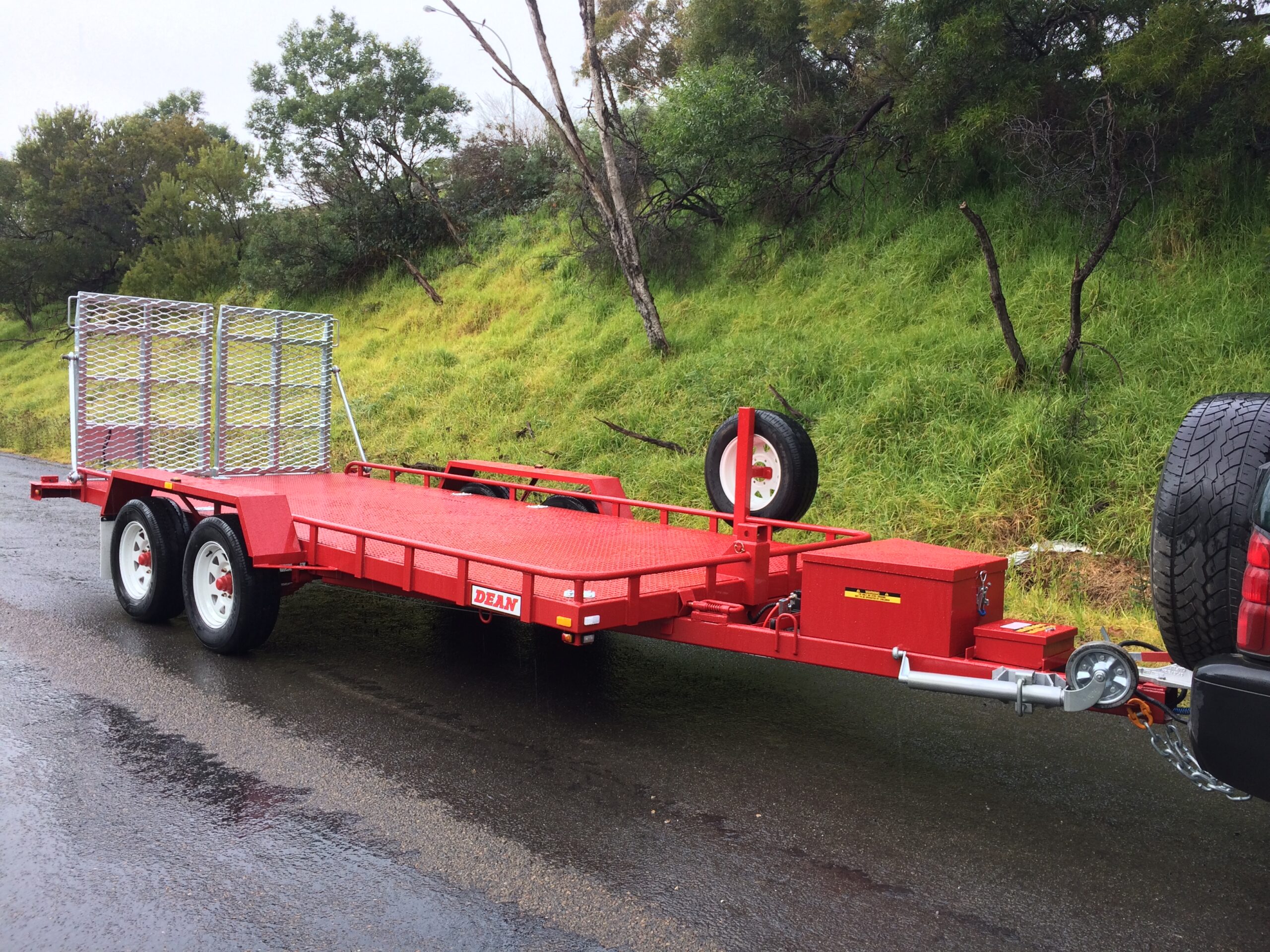

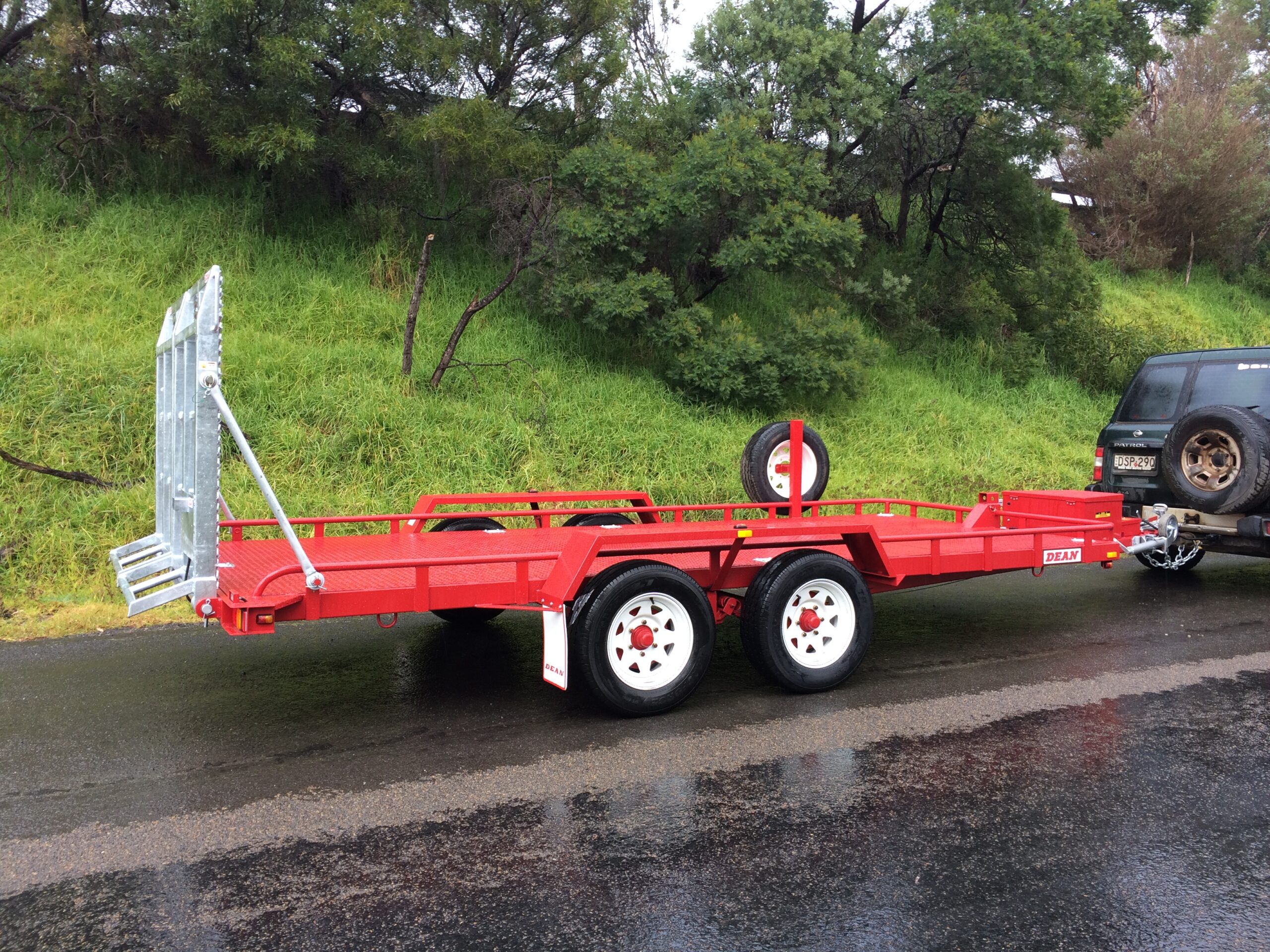

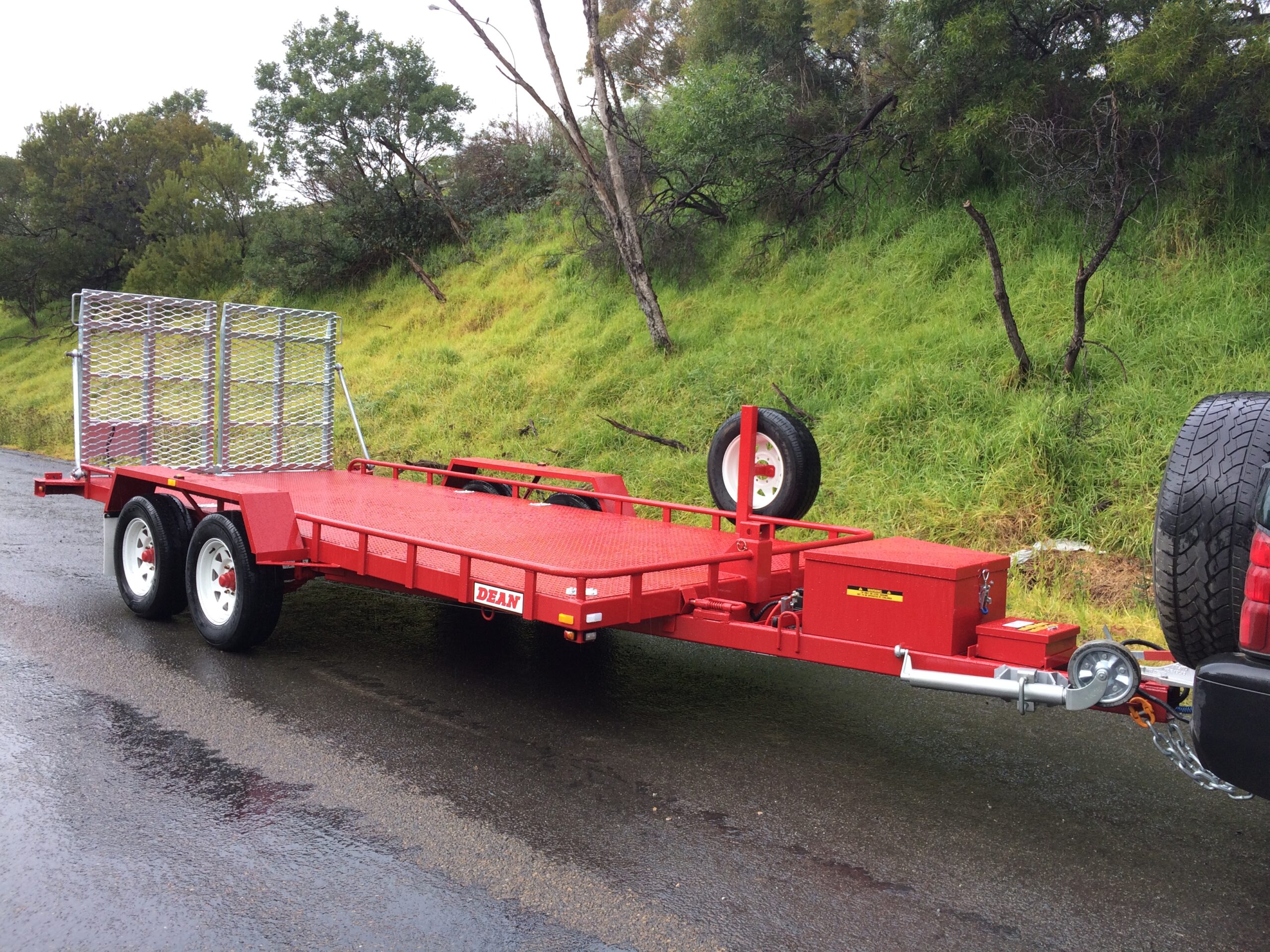

No.18 Tandem tilt bed plant trailer, 4.9m x 2.03m (16′ x 7′): Electric breakaway brakes, 2.0t capacity

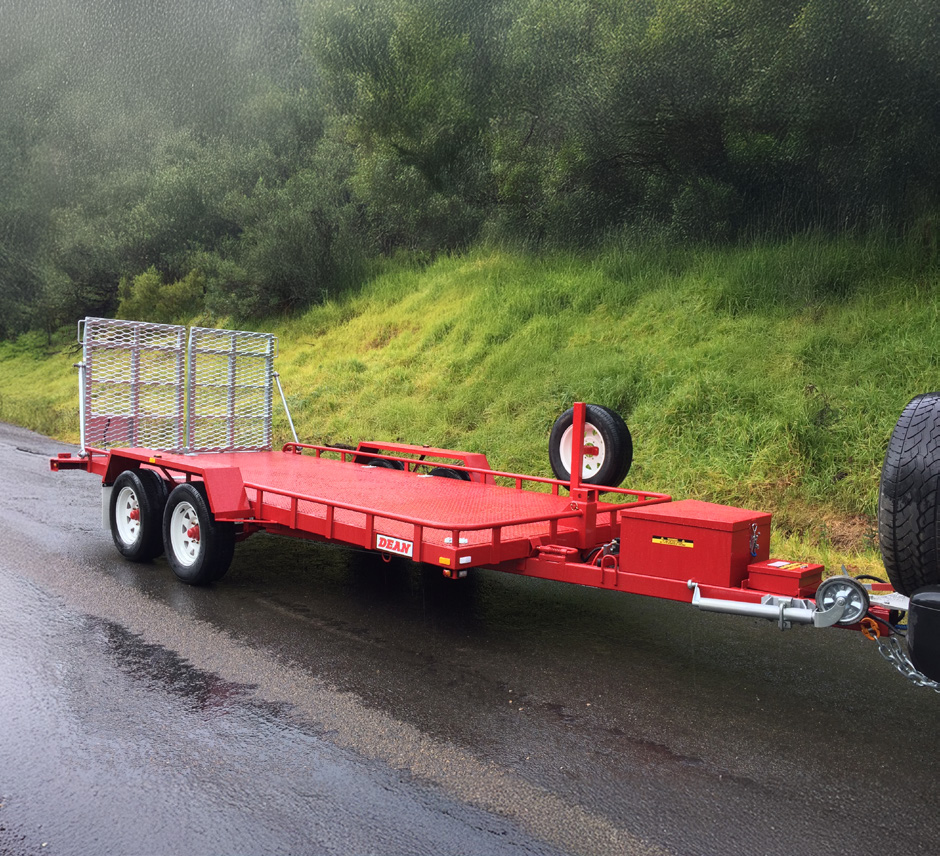

No 18HD Heavy Duty Tandem axle, tilt bed plant trailer, 2.5 tonne capacity, 4.9m x 1.92m deck.
# Option to increase the carrying capacity with Electric Breakaway brakes.
a) 2.0t, 3.45m x 1.98m (11′ x 6’6
b) 2.5t, 4.9m x 1.92m (16’x6′)
EXTRAS
Optional extras: Full galvanised finish
Custom tray lengths upon request
| Tilting mechanism: | Hand hydraulic operation to tilt tray |
| Loading ramps: | Split full width spring assisted grid mesh ramps with manual lock |
| Tie rails: | 31mm diameter tube welded to front and sides of tray |
| Suspension: | AL-KO independent rubber suspension |
| Wheels: | 14 x 5 Ford 5 stud - white |
| Tyres: | 195/75R14C light truck tyres |
| Mudguards: | Welded to tray |
| Mudflaps: | White with Dean logo |
| Jockey wheel: | Swivel 200mm type on drawbar |
| Coupling: | 3.5t fixed to suit 50mm ball with hand brake and safety chain |
| Lighting: | All LED multi-volt combination lamps |
| Electrical Connection: | Flat 7 pin plug |
| Brakes: | 10 inch electric breakaway brakes on both axles with Brake Safe Series 6000 unit |
| Spare wheel & tyre: | Mounted on trailer |
| Length Overall: | 6.5m |
| Width Overall: | 2.49m |
| Tray Size: | 4.9m long x 1.92m wide |
| Loading ramps: | 0.9m long x 0.875m wide |
| Load capacity: | 2.5 tonne |
| ATM: | 3.5 tonne |
| Tare Weight: | 1 tonne |
Extra cost. Final cost price to be calculated at the time of ordering and manufacturing.
Available In all standard colours. View colours
Custom tray lengths upon request
Option to increase the carrying capacity with Electric Breakaway brakes.
