Pickup & Delivery
To be arranged with sales.

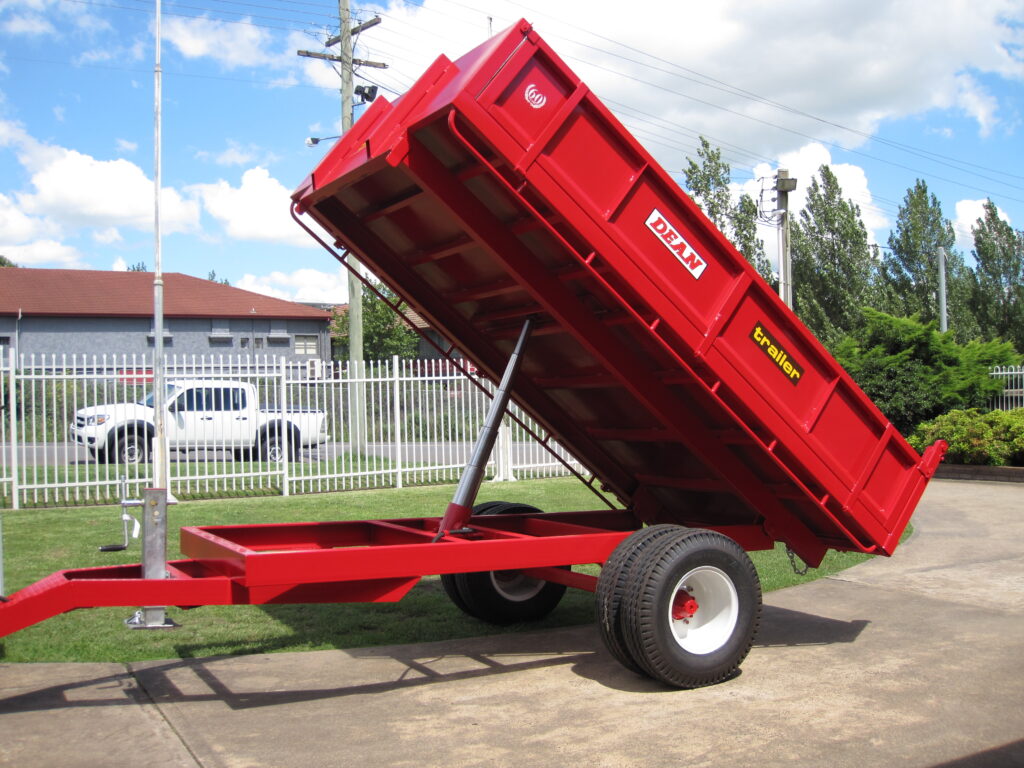

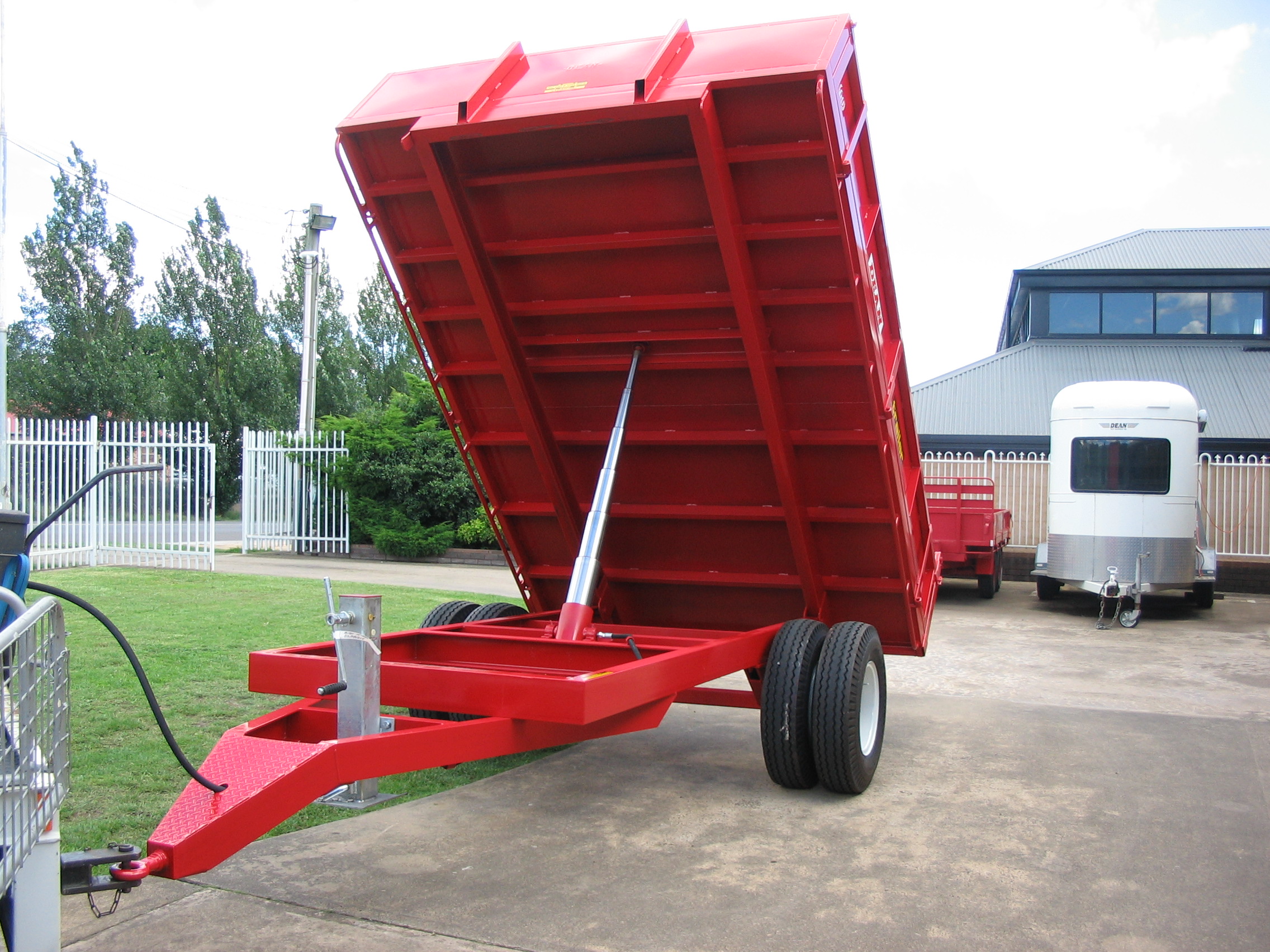

| Tipping mechanism: | Single acting multi stage hydraulic ram run off tractor hydraulics |
| Headboard: | None |
| Sides: | Drop and removable |
| Tailgate: | Top and bottom hinged with manual lock |
| Tie rails: | 21mm diameter tube welded to sides |
| Suspension: | 80mm square solid steel axle welded to chassis |
| Wheels: | Dual 16 x 6 stud - white |
| Tyres: | 8.25 x 16 x 14 ply |
| Jack stand: | Heavy duty drop leg on drawbar |
| Coupling: | Swivel ring to suit 45mm diameter pin |
| Brakes: | Unbraked |
| Length Overall: | 5.07m |
| Width Overall: | 2.45m |
| Tray Size: | 3.6m long x 2.4m wide |
| Side height: | 500mm high |
| Load capacity: | 6.0 tonne |
| ATM: | 7.7 tonne |
| Tare Weight: | 1.7 tonne |
Extra cost. Final cost price to be calculated at the time of ordering and manufacturing.
Custom tray lengths upon request
