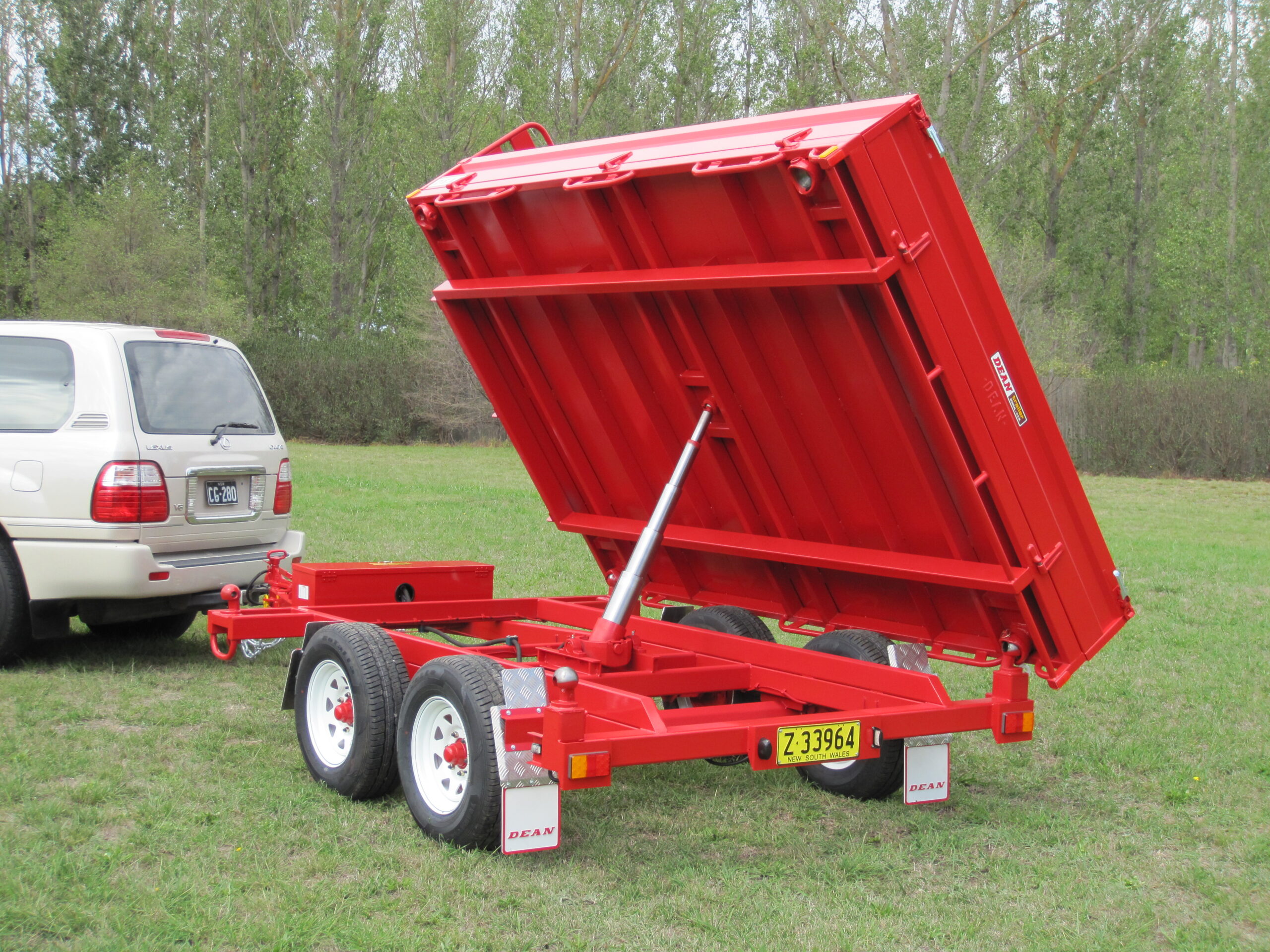

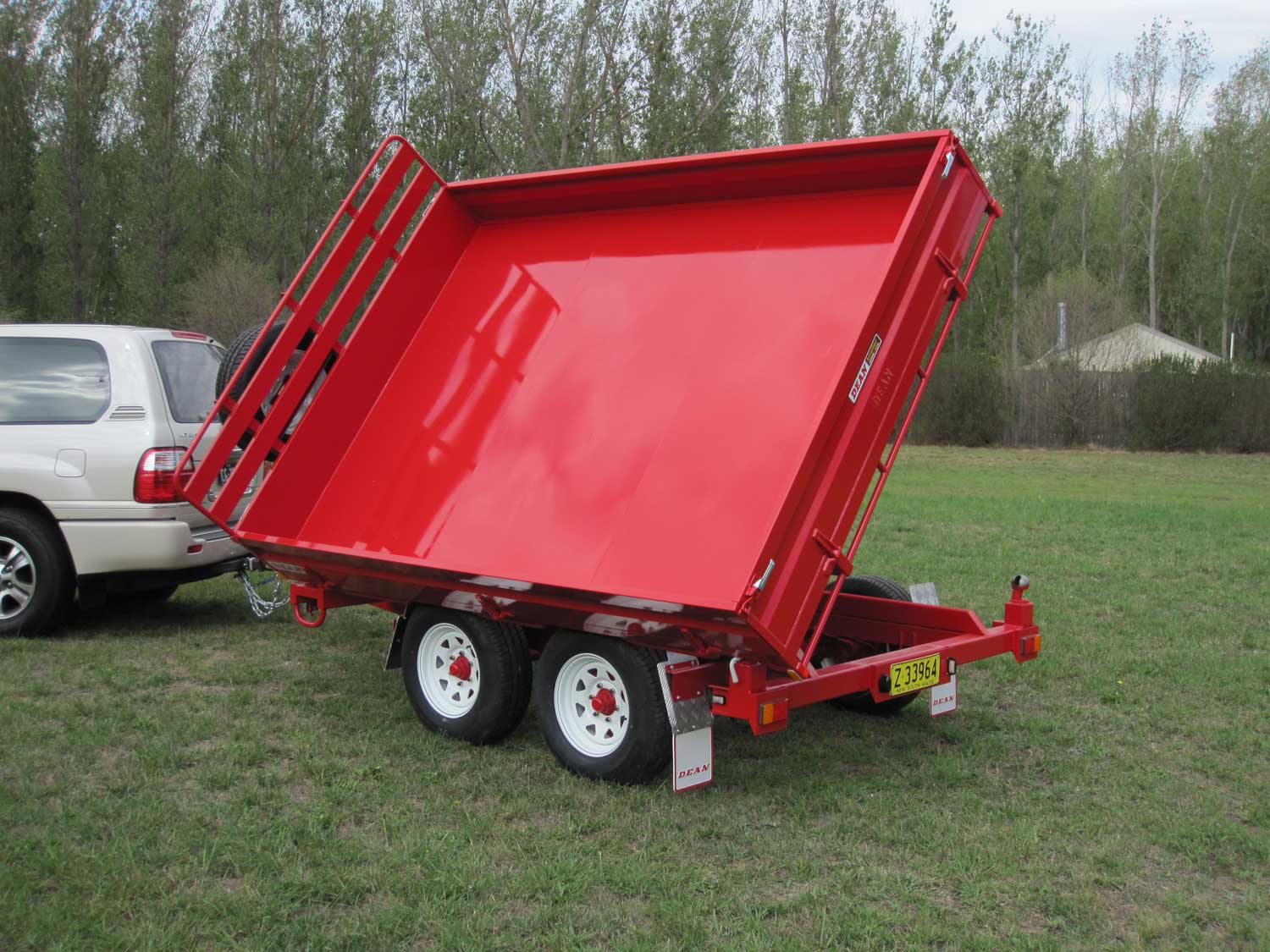

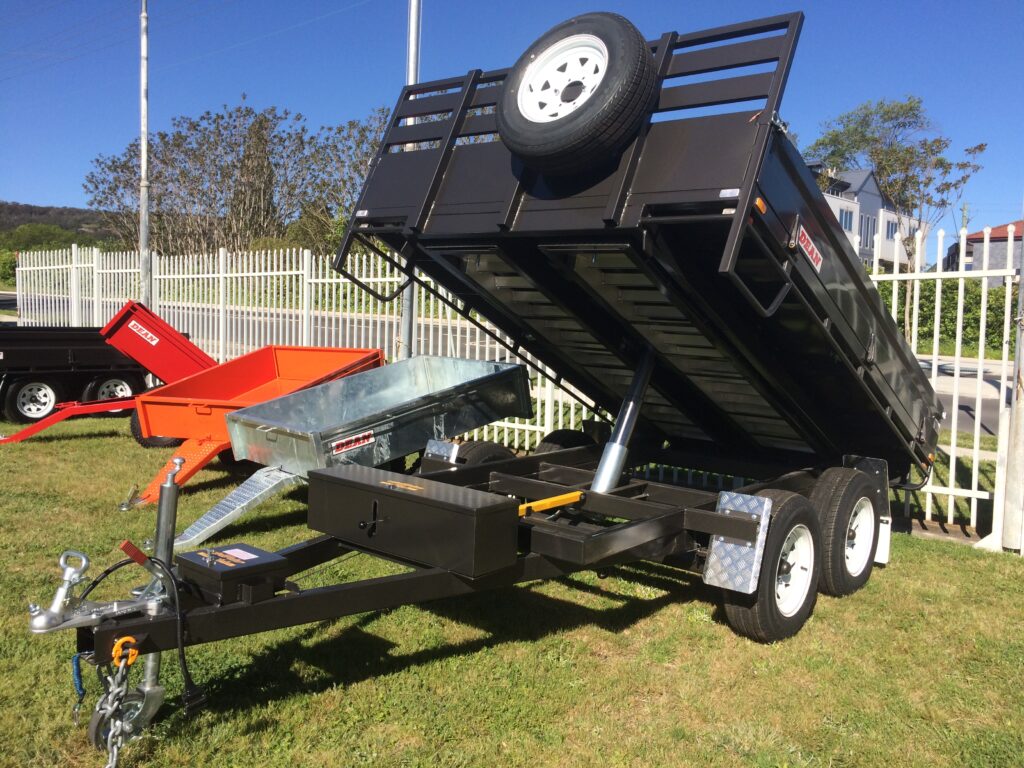

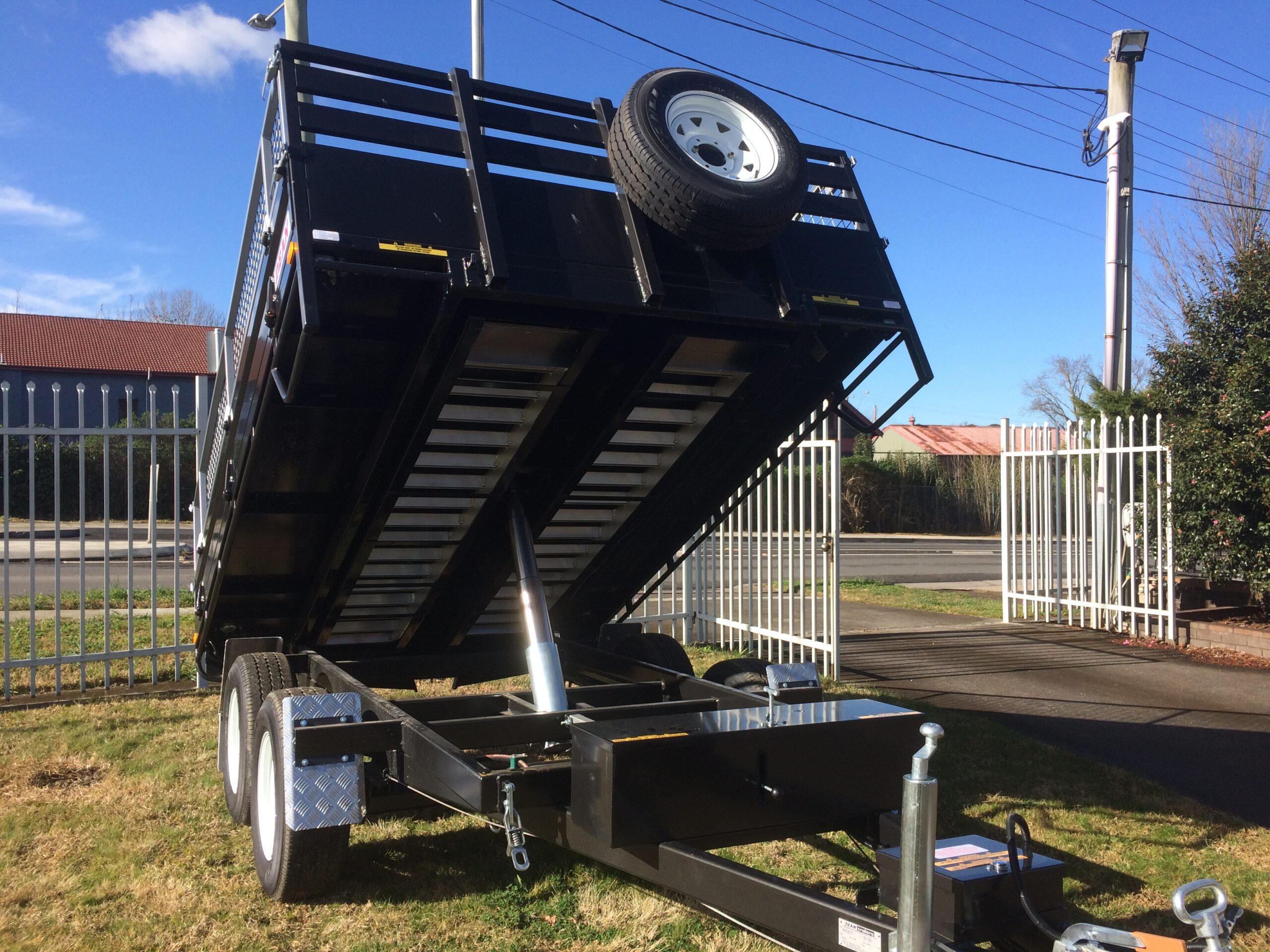

Tipping Mechanism
* Standard (back)

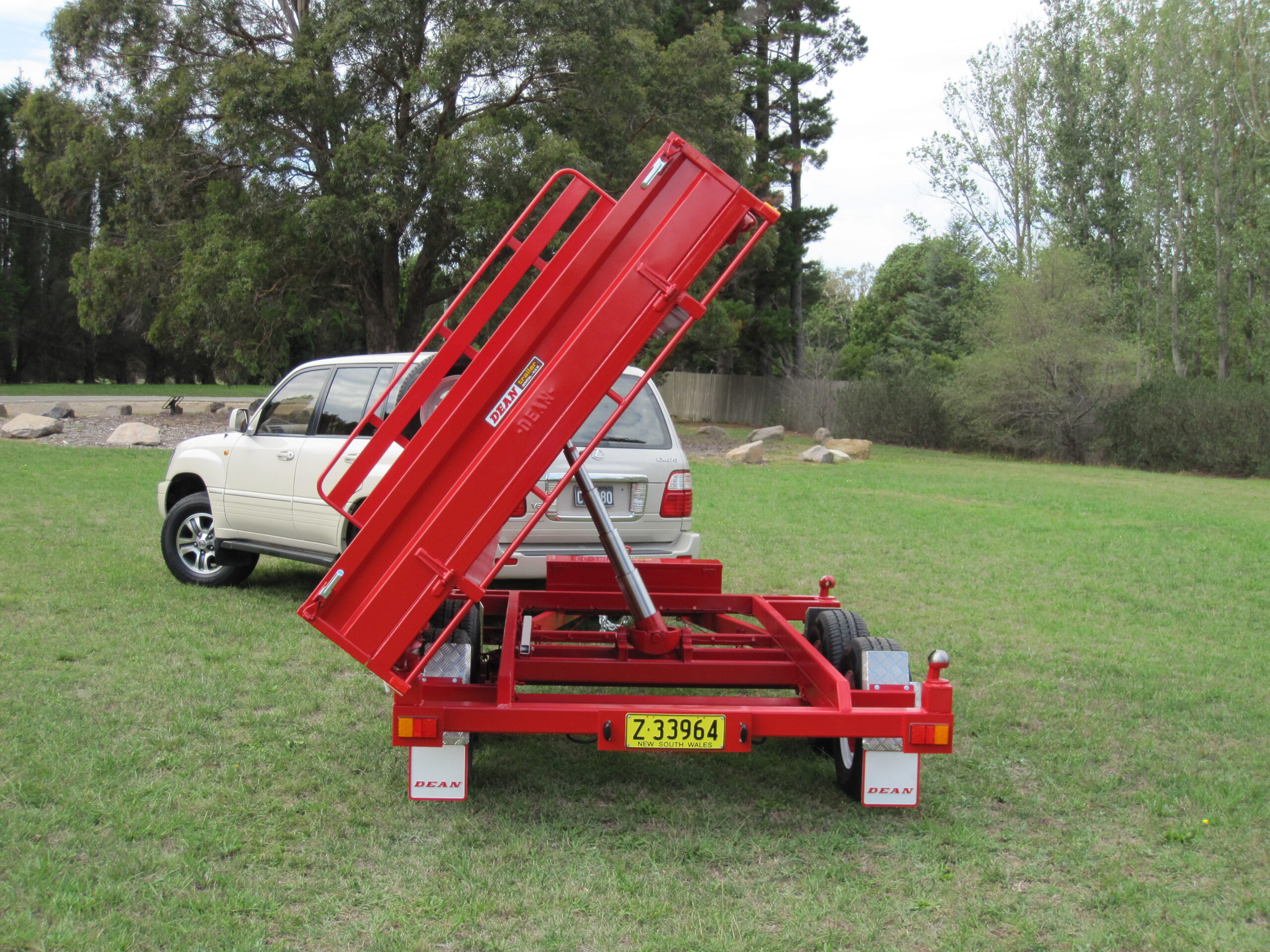

* Three Way Tipping
Additional Features:
| Tipping mechanism: | Multi stage hydraulic ram, 12v power pack fitted to drawbar |
| Headboard: | Combination 21mm diameter tube and pressed channel |
| Sides: | Drop and removable |
| Tailgate: | Bottom hinged with manual lock |
| Rope rails: | 27mm OD tube welded to coaming |
| Suspension: | AL-KO independent rubber suspension |
| Wheels: | 15 x 7 Landcruiser 6 stud - white |
| Tyres: | 225/70R15C |
| Mudguards: | Welded to tray |
| Mudflaps: | White with Dean logo |
| Jockey wheel: | 8" Jockey wheel on a Swivel mount |
| Coupling: | 50mm electric ball with safety chain |
| Lighting: | All LED multi-volt combination lamps |
| Electrical Connection: | Flat 7 pin plug |
| Brakes: | 10 inch Electric breakaway brakes on both axles with Brake Safe Series 6000 unit |
| Spare wheel & tyre: | Mounted on trailer |
| Length Overall: | 4.35m |
| Width Overall: | 2.25m |
| Tray Size: | 3.0m long x 2.1m wide |
| Side height: | 330mm (Removable) |
| Load capacity: | 2.5 tonne |
| ATM: | 3.5 tonne |
| Tare Weight: | 1.0 tonne |
Extra cost. Final cost price to be calculated at the time of ordering and manufacturing.
Custom tray lengths upon request
