| Tipping mechanism: | Hand operated with slam catch lock |
| Headboard: | none |
| Sides: | Fixed |

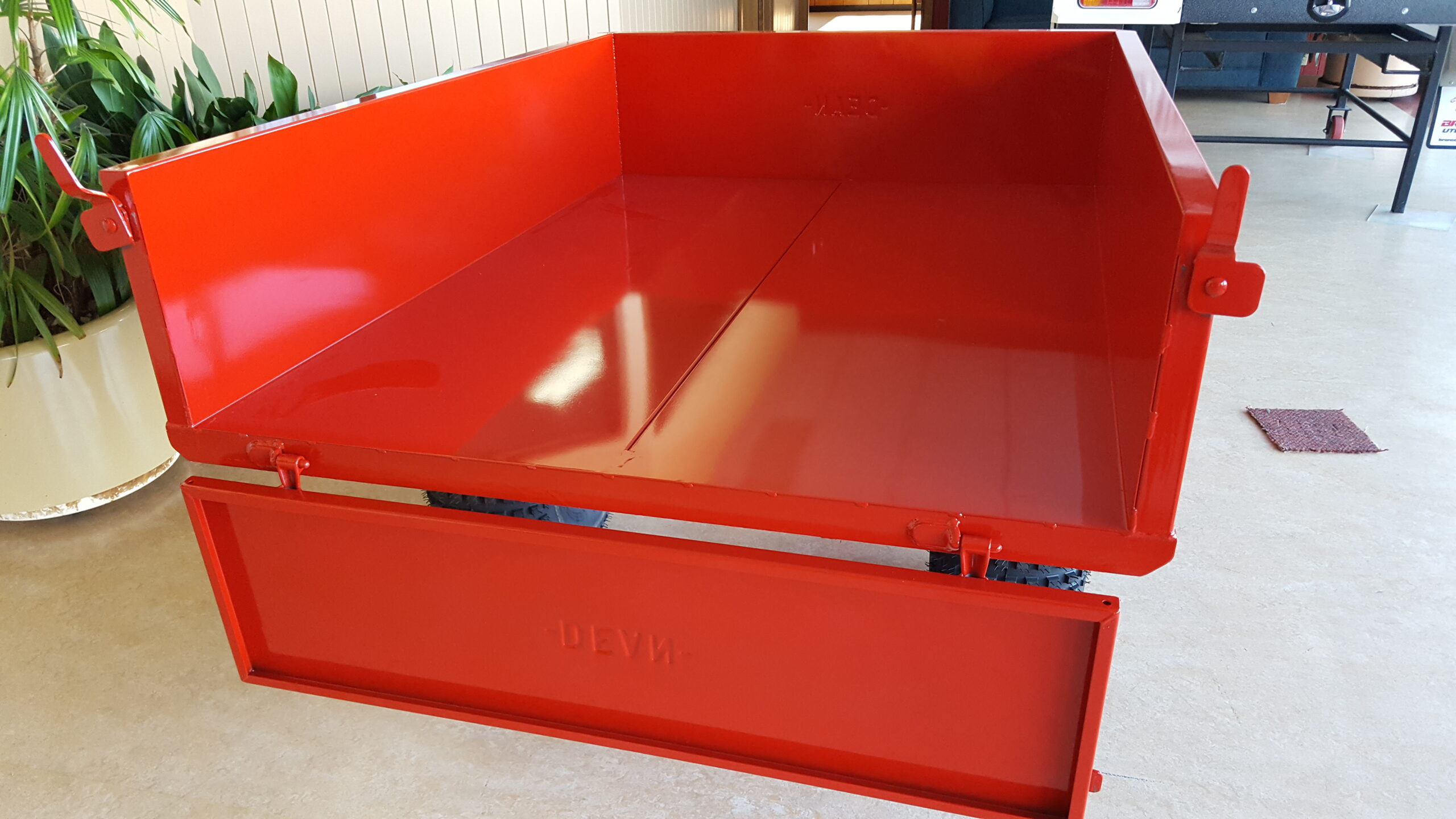

| Tailgate: | Bottom hinged with manual lock |
| Tie rails: | 8mm diameter rod welded to sides |
| Suspension: | 39mm diameter solid steel axle welded to chassis |
| Hubs: | Unbraked hi speed bearings |
| Wheels: | 8 x 200 wide 5 stud (HT Drilling) white |
| Tyres: | 22 x 11.00 x 8 ply |
| Jack stand: | None |
| Coupling: | Carac 50mm ball quick release to suit quad bikes |
| Brakes: | Unbraked |
| Length Overall: | 2.51m |
| Width Overall: | 1.25m |
| Tray Size: | 1.6m long x 1.15m wide |
| Side height: | 300mm high |
| Load Capacity | 0.6 tonne |
| Tare Weight | 0.12 tonne |
Extra cost. Final cost price to be calculated at the time of ordering and manufacturing.
Custom tray lengths upon request
