Additional Features:
| Tilting mechanism: | None |

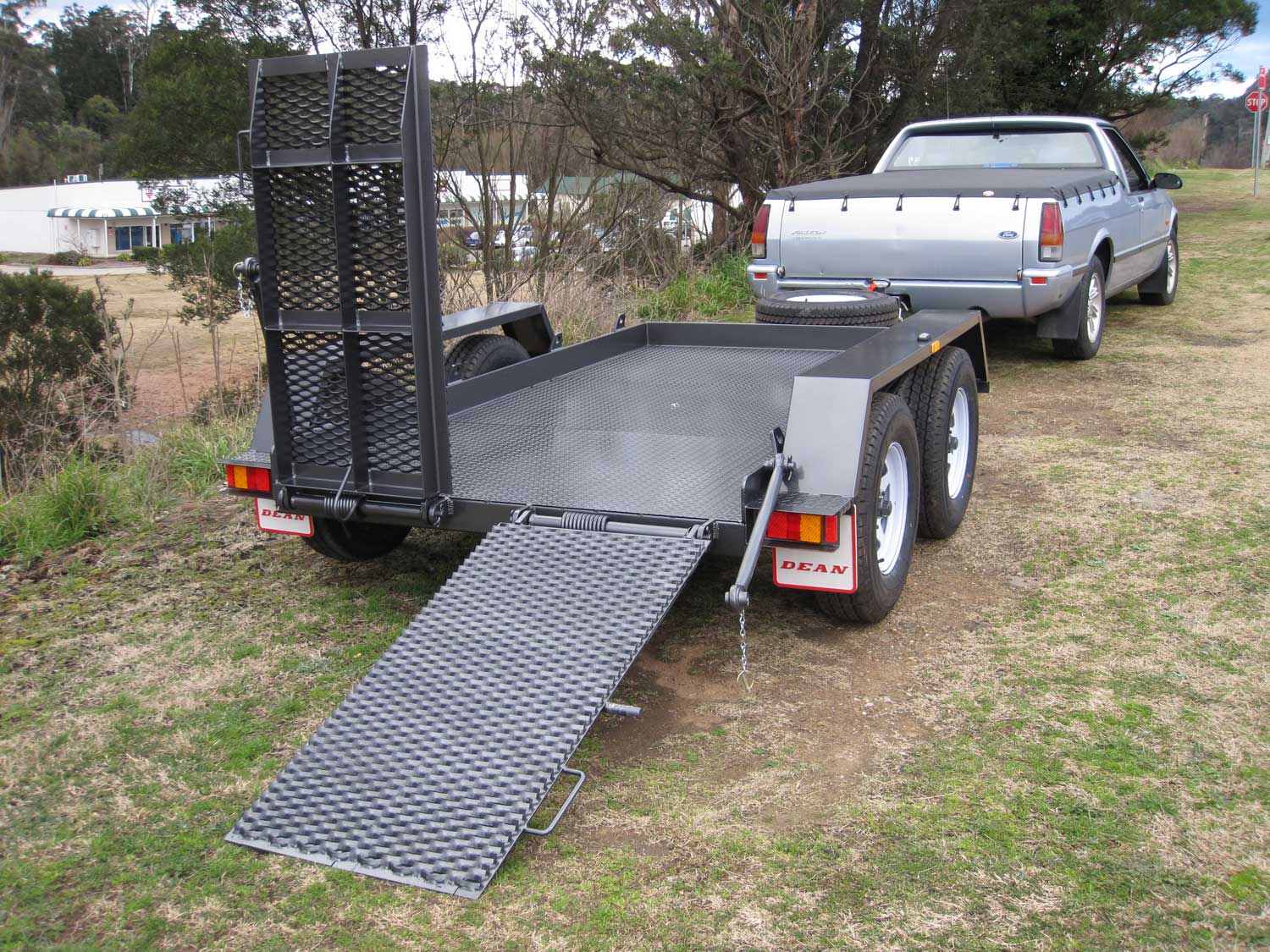

| Loading ramps: | 2 x track width, spring assisted grid mesh loading ramps |
| Attachment points: | 8 x tie down rings, 4 welded down each side of tray |
| Suspension: | Tandem AL-KO independent rubber suspension |
| Wheels: | 16 x 6 Landcruiser 6 stud |
| Tyres: | 225/75R16C |
| Mudguards: | Welded to tray |
| Mudflaps: | White with Dean logo |
| Jackstand: | Drop leg jackstand |
| Coupling: | Fixed 6 tonne pintle ring with safety chain or 70mm ball coupling |
| Lighting: | All LED multi-volt combination lamps |
| Electrical Connection: | Flat 7 pin plug |
| Brakes: | 12 inch electric breakaway brakes |
| Spare wheel & tyre: | Mounted on trailer |
| Length Overall: | 5.56m |
| Width Overall: | 2.48m |
| Tray Size: | 3.6m long x 1.9m wide |
| Loading Ramps: | 1.50m long x 0.6m wide |
| Load capacity: | 3.28 tonne |
| ATM: | 4.5 tonne |
| Tare Weight: | 1.22 tonne |
Extra cost. Final cost price to be calculated at the time of ordering and manufacturing.
Custom tray lengths upon request
