Tray Size:
a) 3m x 1.675m (10’x5½’), Load capacity: 0.9t
b) 3m x 2.03m (10’x7′), Load capacity: 0.9t
Brakes:
E. Electric brakes.
M. Mechanical override brakes

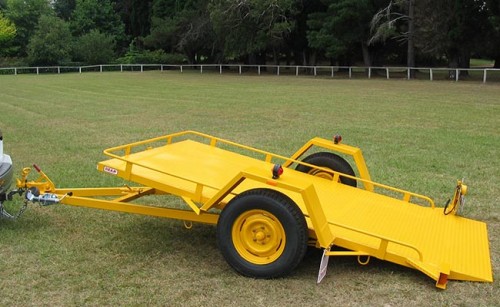

| Tilting mechanism: | Self tilting bed with slam catch locking mechanism |

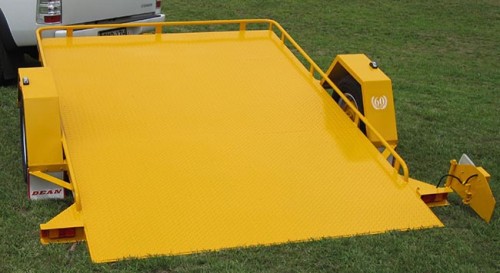

| Loading ramps: | full width incorporated into tray |
| Tie rails: | 21mm OD tube welded to front and sides of tray |
| Suspension: | 45mm square 100mm drop axle with 7 leaf slipper springs |
| Wheels: | 14 x 5 Ford 5 stud - white |
| Tyres: | 195/75R14C light truck tyres |
| Mudguards: | Welded to tray |
| Mudflaps: | White with Dean logo |
| Jockey wheel: | Swivel 150mm type on drawbar |
| Coupling: | 50mm ball with hand brake and safety chain |
| Lighting: | All LED multi-volt combination lamps |
| Electrical Connection: | Flat 7 pin plug |
| Brakes: | 10 inch electric brakes or 9 inch mechanical override brakes |
| Spare wheel & tyre: | Mounted on trailer |
| Length Overall: | 4.4m |
| Width Overall: | 2.2m |
| Tray size: | 3.0m long x 1.675m wide |
| Load capacity: | 0.9 tonne |
| ATM: | 1.35 tonne |
| Tare Weight: | 0.450 tonne |

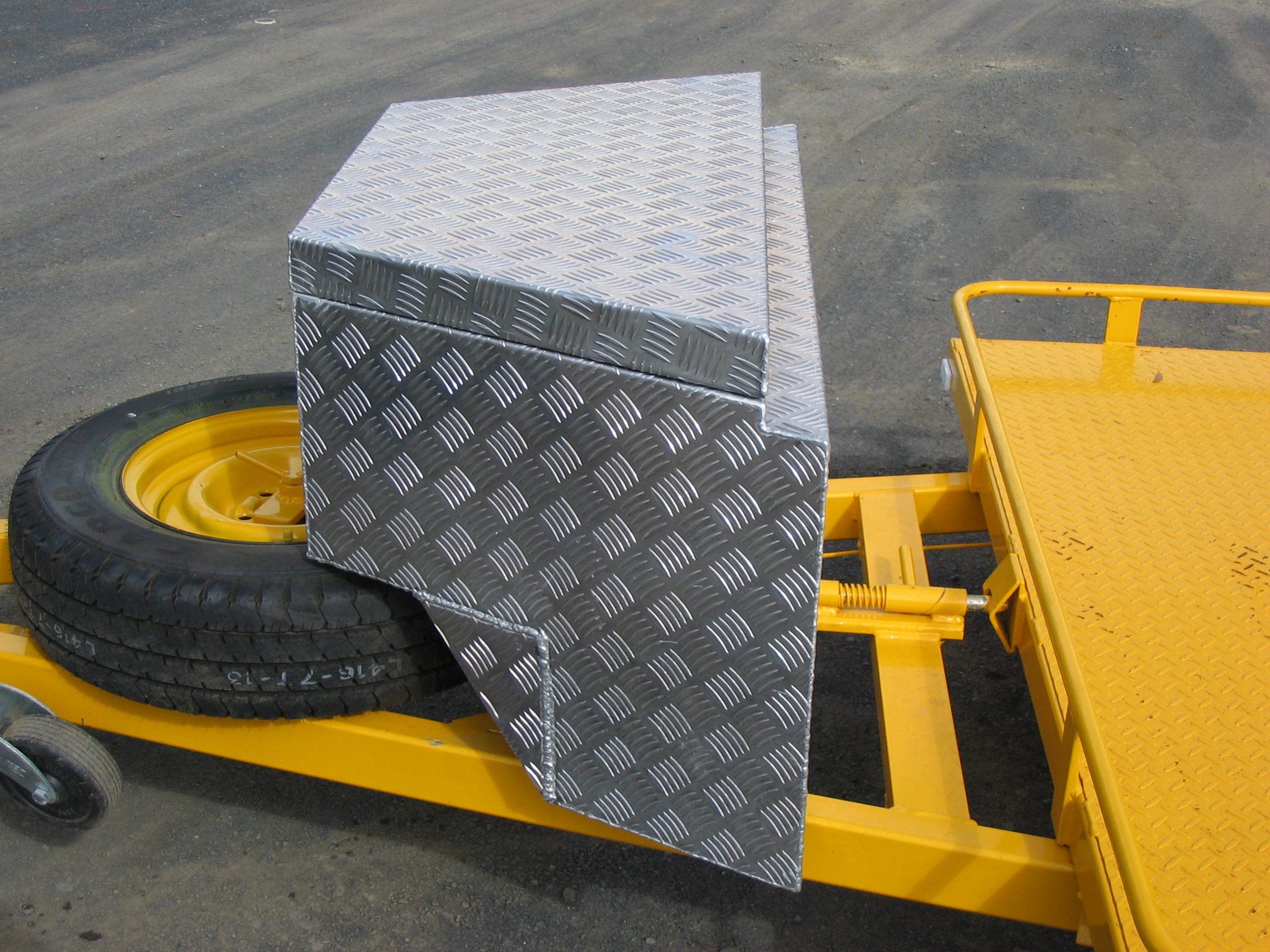

Extra cost. Final cost price to be calculated at the time of ordering and manufacturing.
