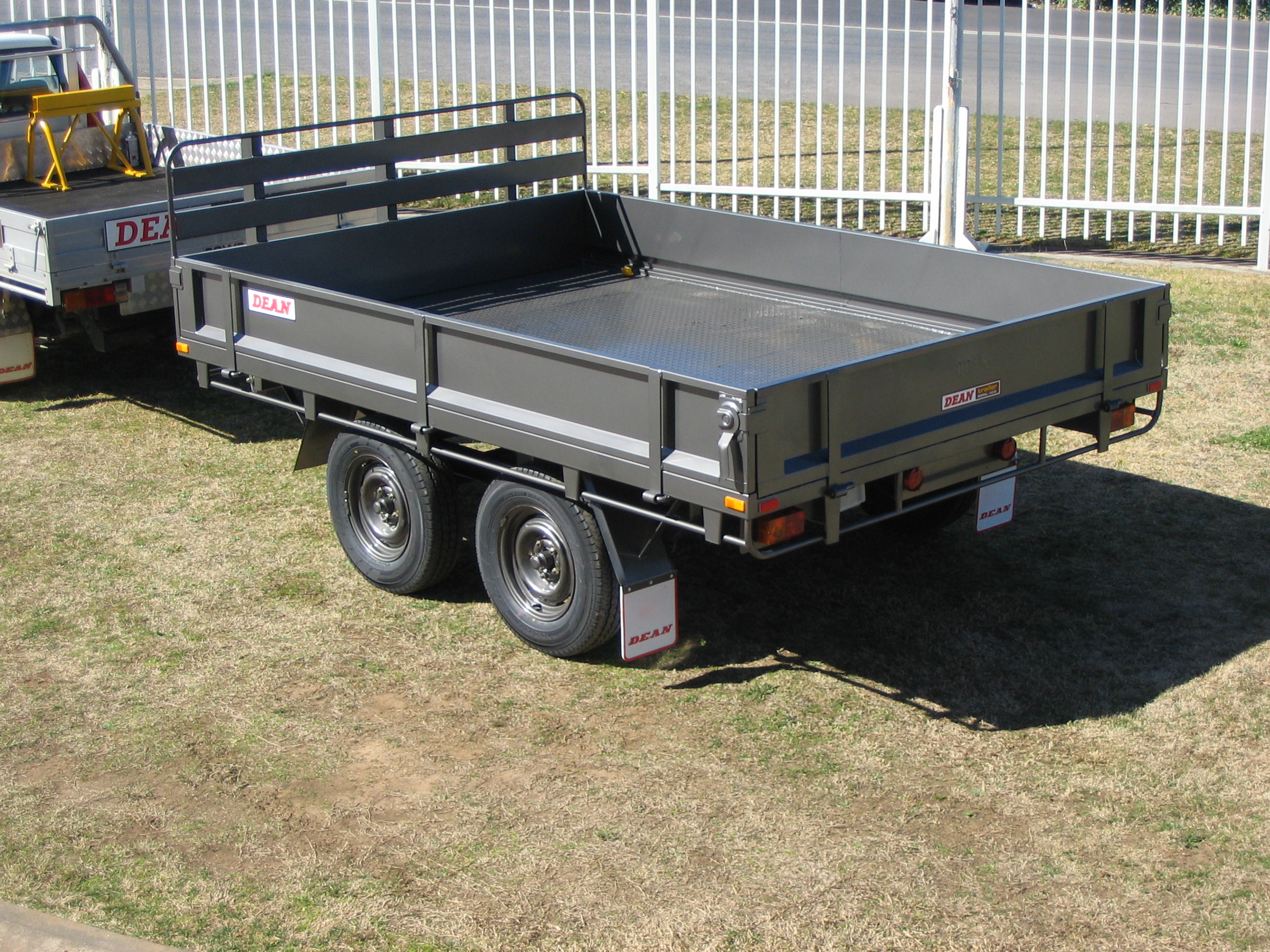

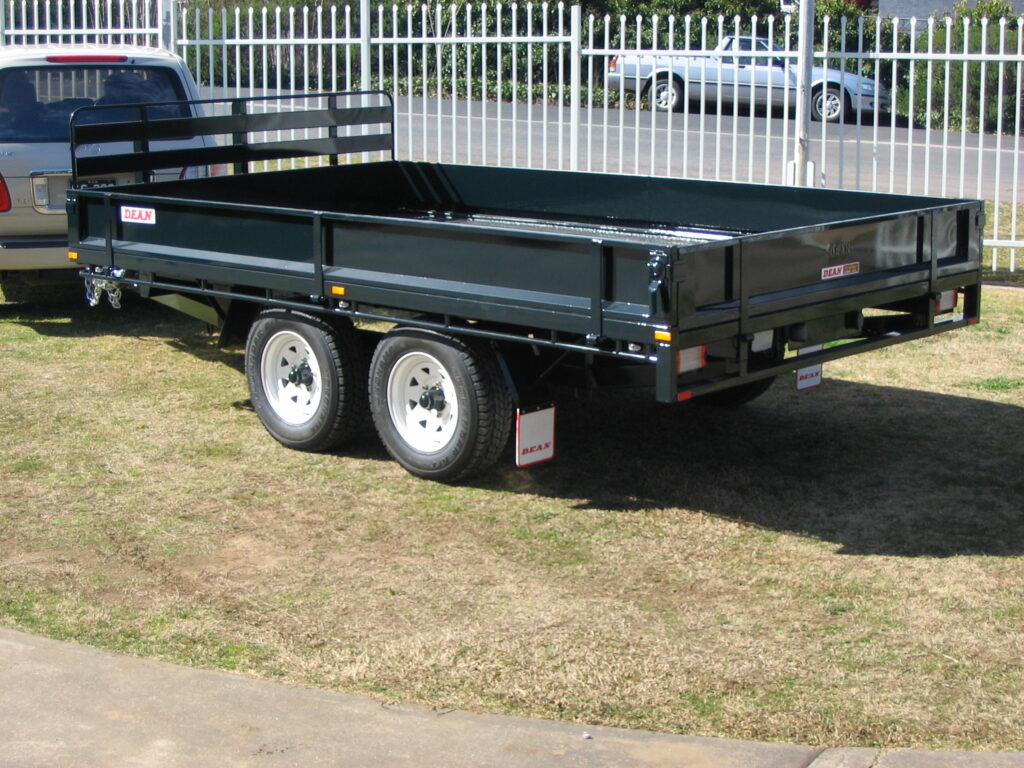

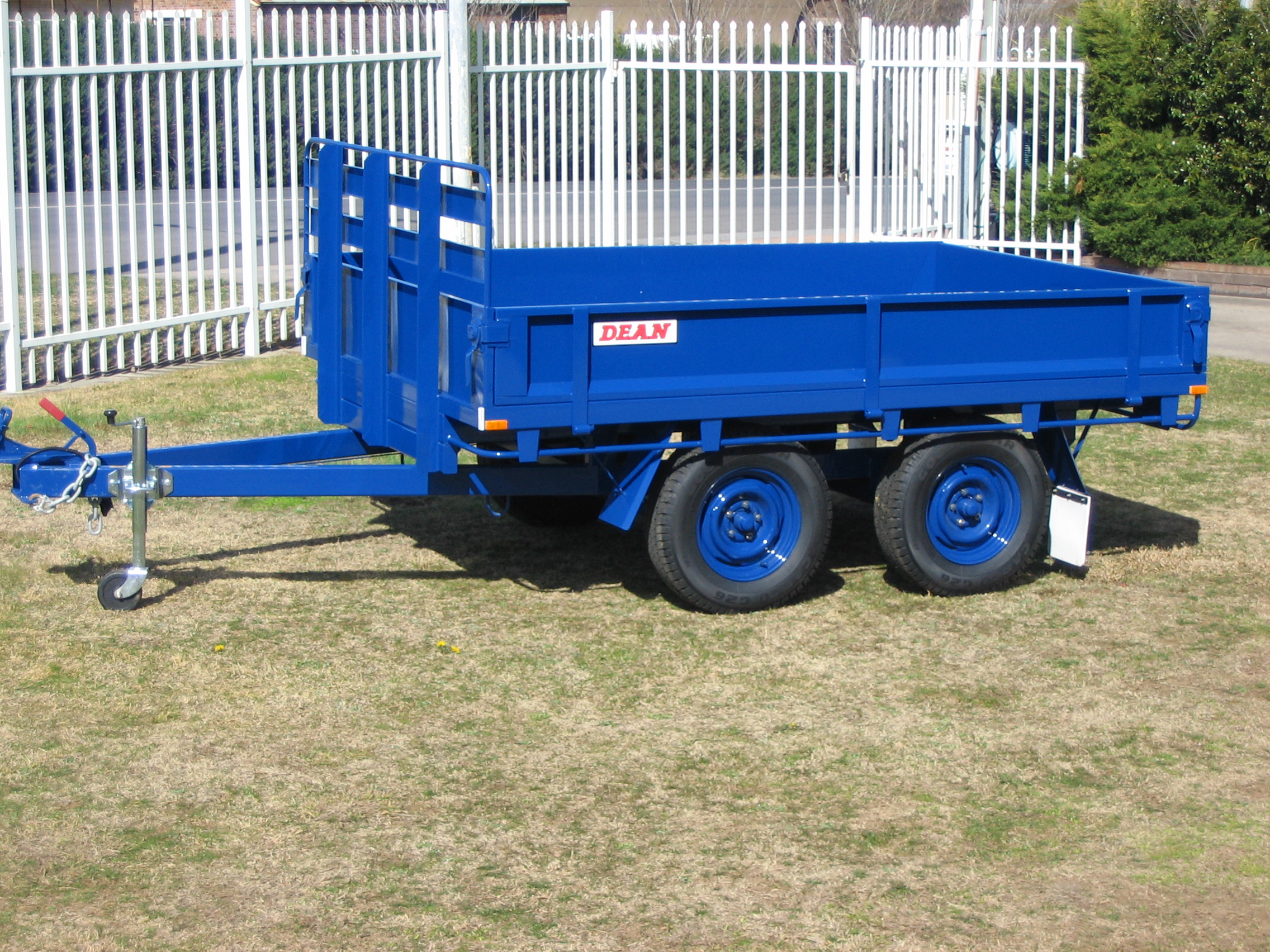

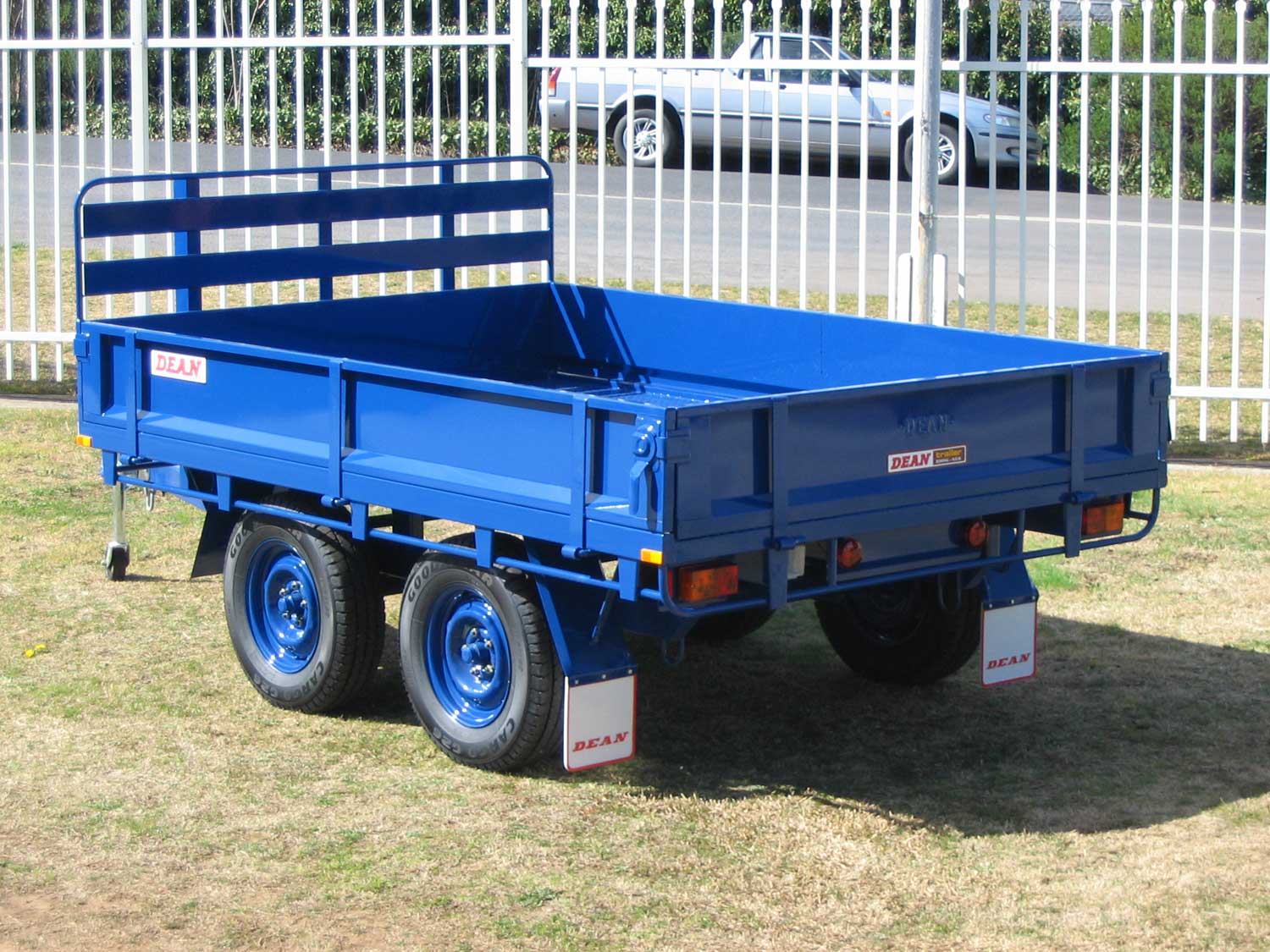

Tandem Axle Utility Trailer

3.37T capacity, tandem axle utility trailer, 4m x 2.4m (12’x7′) tray, 12″ electric breakaway brakes

More about Tandem Axle Utility Trailer

EXTRAS

Optional extras:

  • Mesh side extension
  • Aluminium ramps
  • Under deck storage for ramps
  • Rear stabiliser legs
  • Lay flat tie downs in the deck
  • Mesh side extension
  • Stock crate

Specifications

Headboard:Combination 21mm diameter tube and pressed channel
Sides:Drop and removable
Tailgate:Bottom hinged with manual lock
Rope rails:27mm OD tube welded to coaming
Suspension:AL-KO independent rubber suspension
Wheels:Landcruiser 5 stud - white
Tyres:225/75R16C
Mudguards:Welded to tray
Mudflaps:White with Dean logo
Jackstand: Drop leg jackstand
Coupling:Fixed 6t pintle ring with safety chain
Electrical Connection:Flat 7 pin plug
Brakes:12 inch electric breakaway brakes on both axles with Brake Safe Series 6000 unit
Spare wheel & tyre:Mounted on Trailer

Dimensions

Length Overall:5.45m
Width Overall:2.49m
Tray Size:4.0m long x 2.4m wide
Side height:330mm (Removable)

Capacity

Load capacity:3.37 tonne
ATM:4.5 tonne
Tare Weight:1.13 tonne

Trailer Options

005-steel
Galvanised finish

Extra cost. Final cost price to be calculated at the time of ordering and manufacturing.
