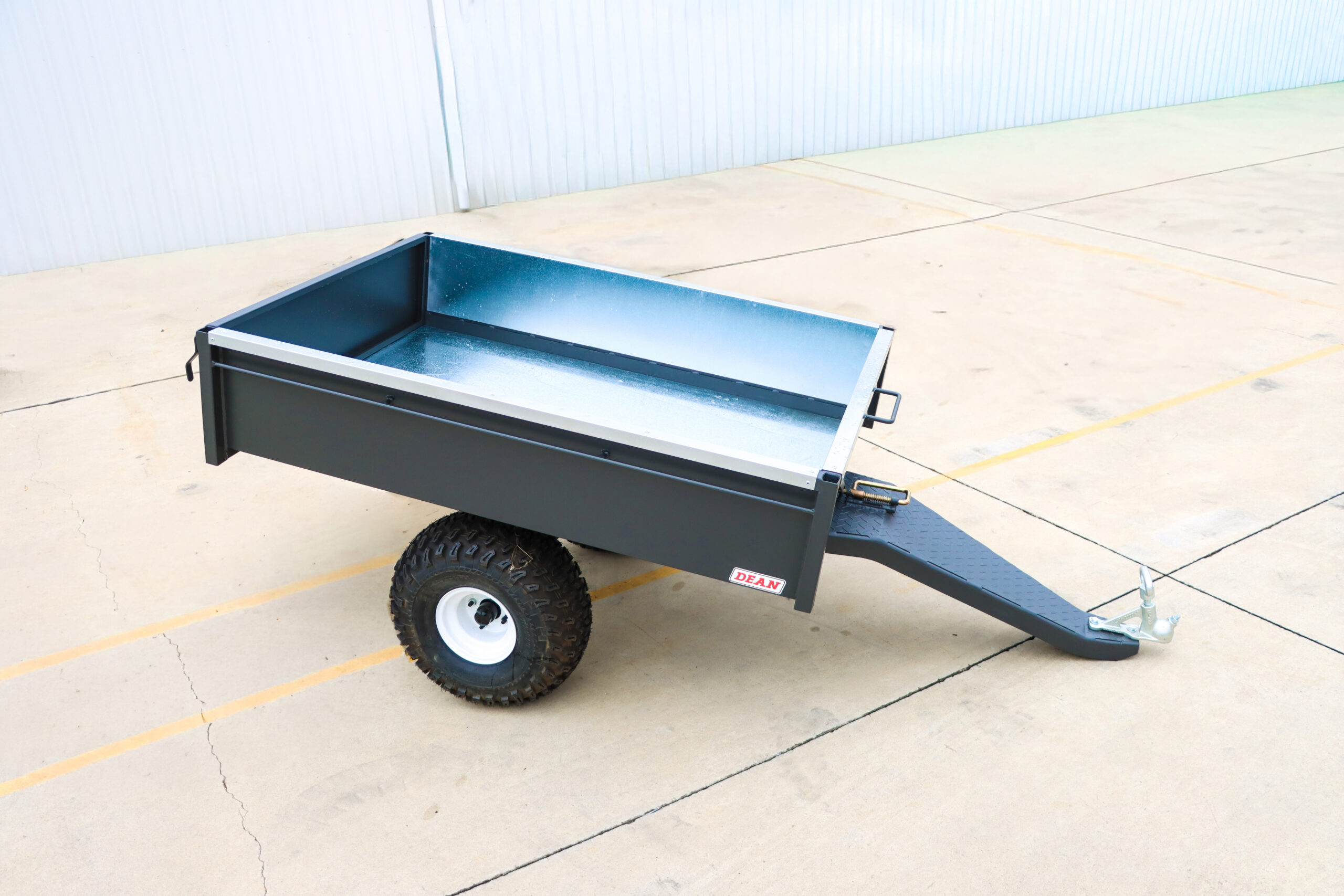

AG06

0.6T Agricultural Trailer | Unbraked | 1.6m x 1.15m (5.2′ x 3.8′) tray | Formally known as the No.13 Agricultural Tipping Bike Trailer
Get A Quote
View Specifications

More about AG06

Heavy Duty Floor
  • 3mm flat sheet floor construction, facilitating easy cleaning and complete
    emptying on every tip, while handling high load applications.
Low Maintenance
  • Unbraked design eliminates the need for brake drums, pads, or cables,
    reducing maintenance requirements and minimising downtime.
Purpose Built
  • Ideal for use behind quad bikes and side-by-sides.



Formally known as the No.13 Agricultural Tipping Bike Trailer

Specifications

Tipping mechanism:Hand operated gravity tip with slam catch lock
Sides:Fixed
Tailgate:Bottom hinged with manual lock
Tie down points:8mm diameter rod welded to sides
Suspension:39mm diameter solid steel axle welded to chassis
Wheels:White 8 x 7 - 4 stud mini
Tyres:22 /11 x 8 - 6ply
Coupling:50mm ball quick release
Heavy Duty Floor:3mm flat sheet floor construction
Brakes:Unbraked

Dimensions

Overall Length:2.51m
Overall Width:1.25m
Tray Length:1.6m (5.2ft)
Tray Width:1.15m (3.8ft)
Sides:0.3m

Capacity

Load Capacity:600kg
Tare Weight:120kg

Trailer Options

005-steel
Galvanised finish

Extra cost. Final cost price to be calculated at the time of ordering and manufacturing.

001-colours
Colour Choices

Available In all standard colours. View colours
