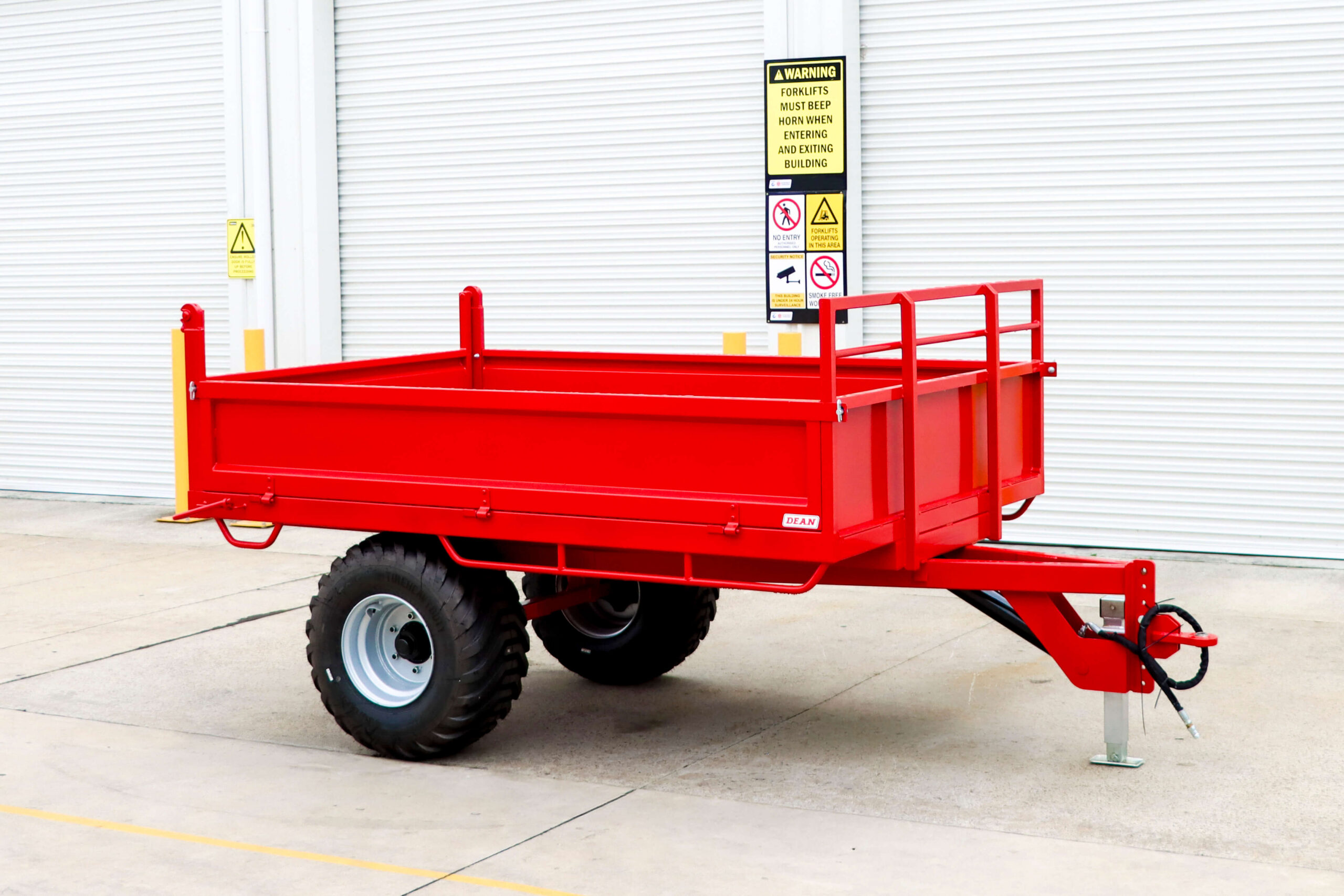

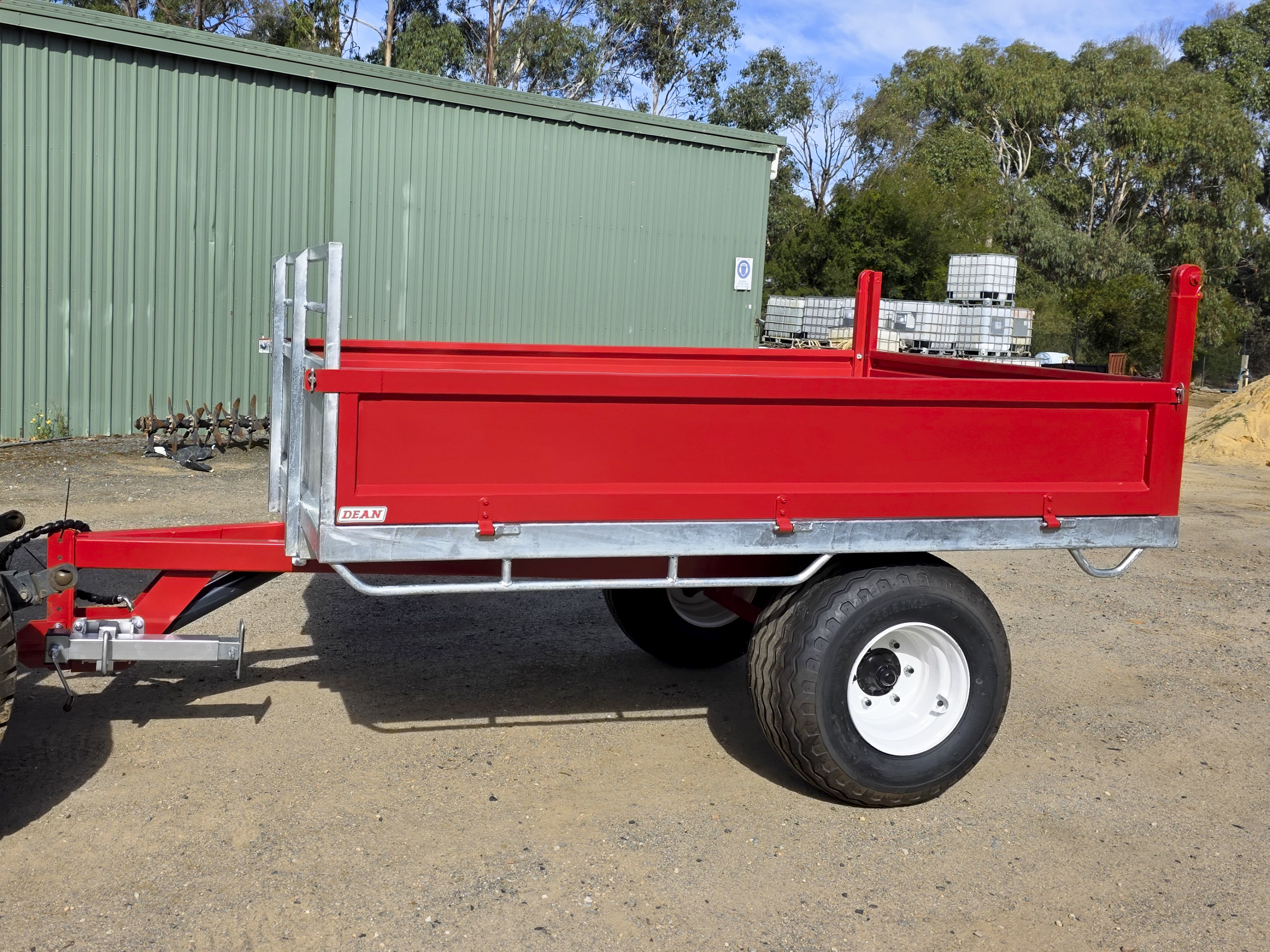

Formally known as the Mark II Hydraulic Dual Wheel Farm Tipper

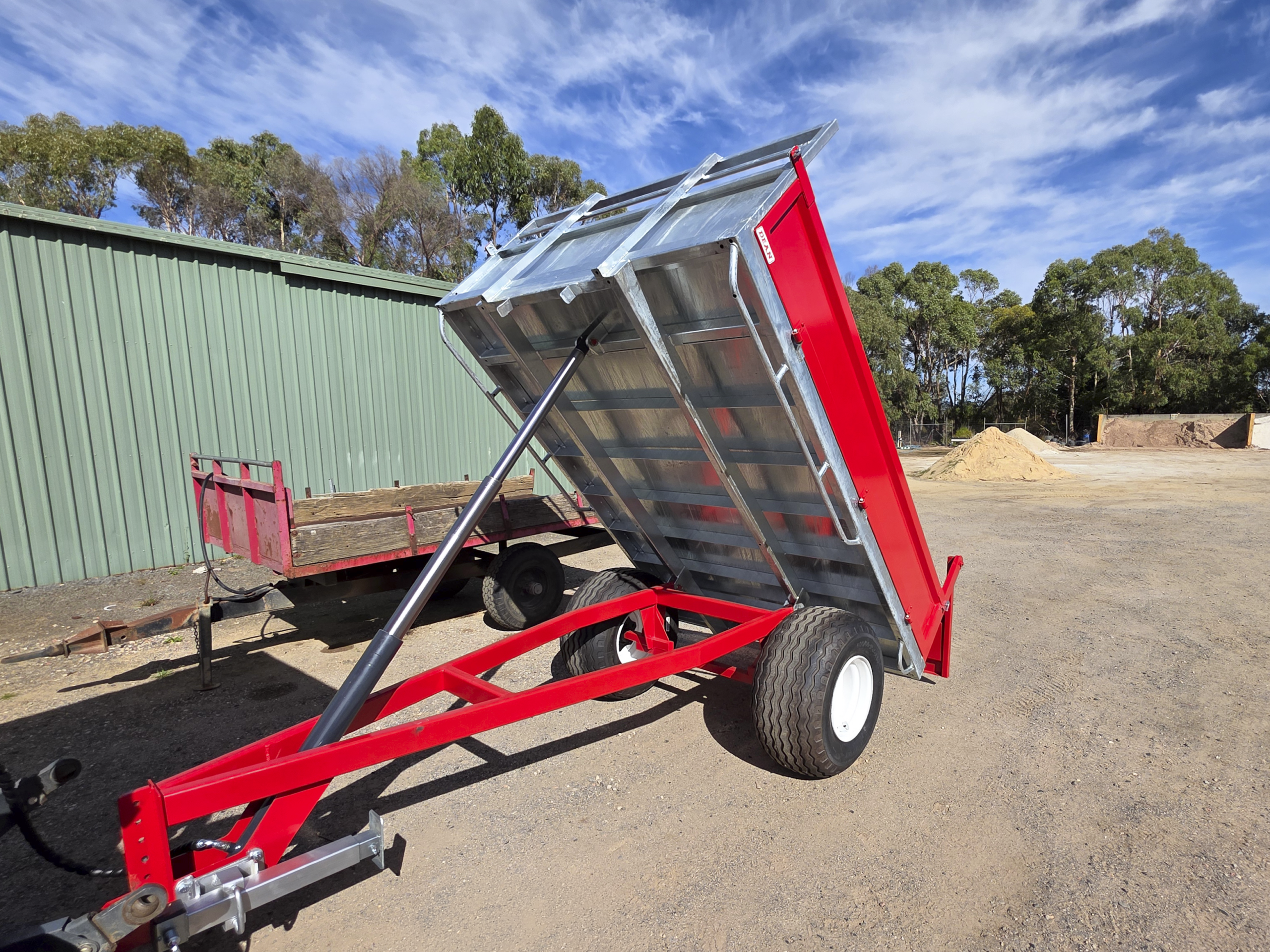

| Tipping mechanism: | Single acting two stage hydraulic ram run off tractor hydraulics |
| Sides: | Drop and removable |
| Tailgate: | Top and bottom hinged with manual lock |
| Suspension: | 50mm square solid steel axle welded to chassis |
| Wheels: | 15.5 dia x 13” wide 6 stud 205 PCD |
| Tyres: | 400/60 - 15.5 x 18ply flotation |
| Jockey stand: | Jack stand on drawbar with swivel mount |
| Coupling: | Swivel ball end to suit 25mm pin |
| Heavy Duty Floor: | 3mm flat sheet floor construction |
| Brakes: | Unbraked |
| Overall Length: | 3.6m |
| Overall Width: | 1.93m |
| Tray Length: | 2.7m (8.86ft) |
| Tray Width: | 1.8m (5.9ft) |
| Load Capacity: | 3000kg |
| ATM (Aggregate Trailer Mass): | 3620kg |
| Tare Weight: | 620kg |
