Formerly known as the No.1 Jumbo Hydraulic Dual Wheel Farm Tipper

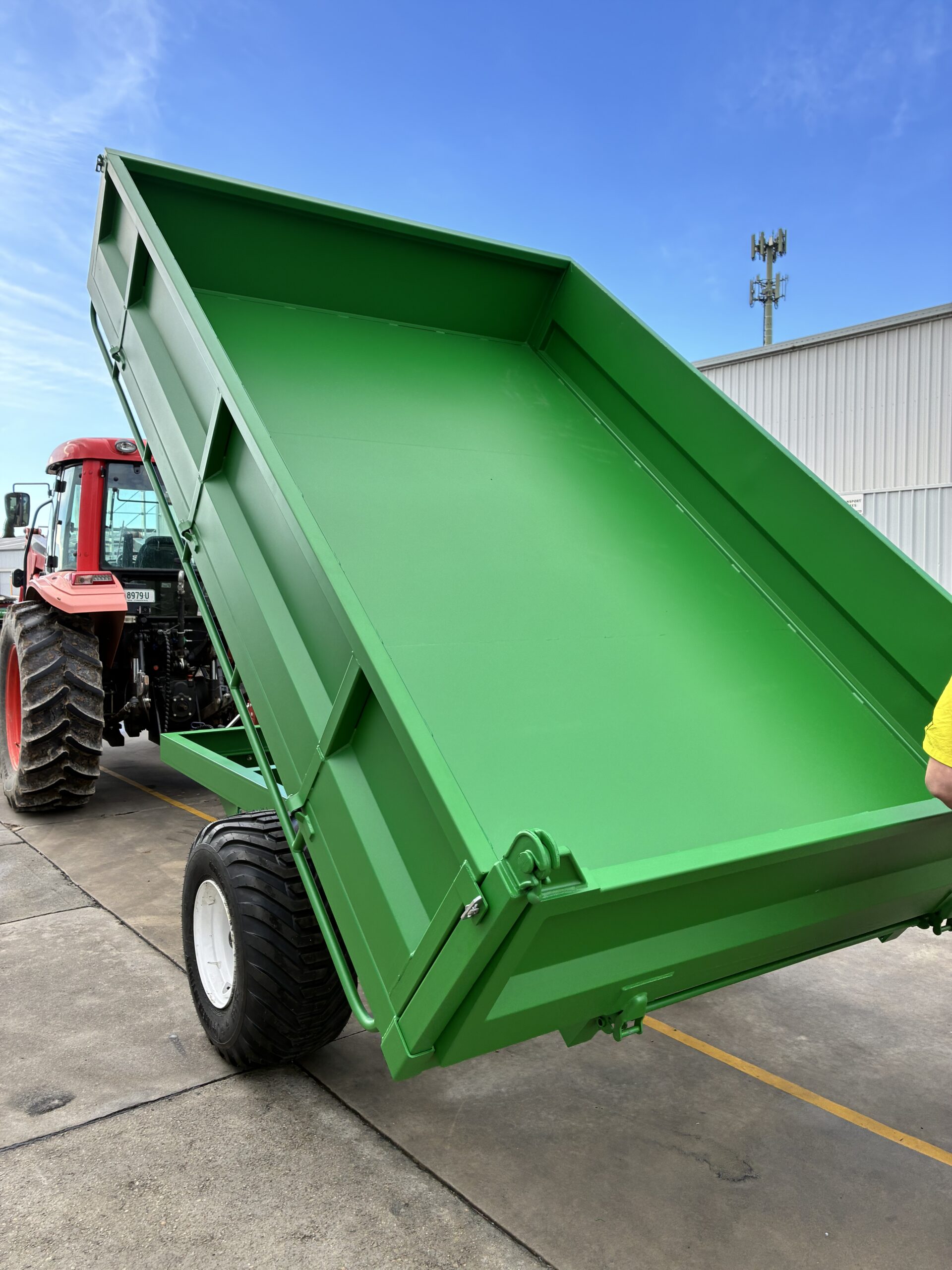

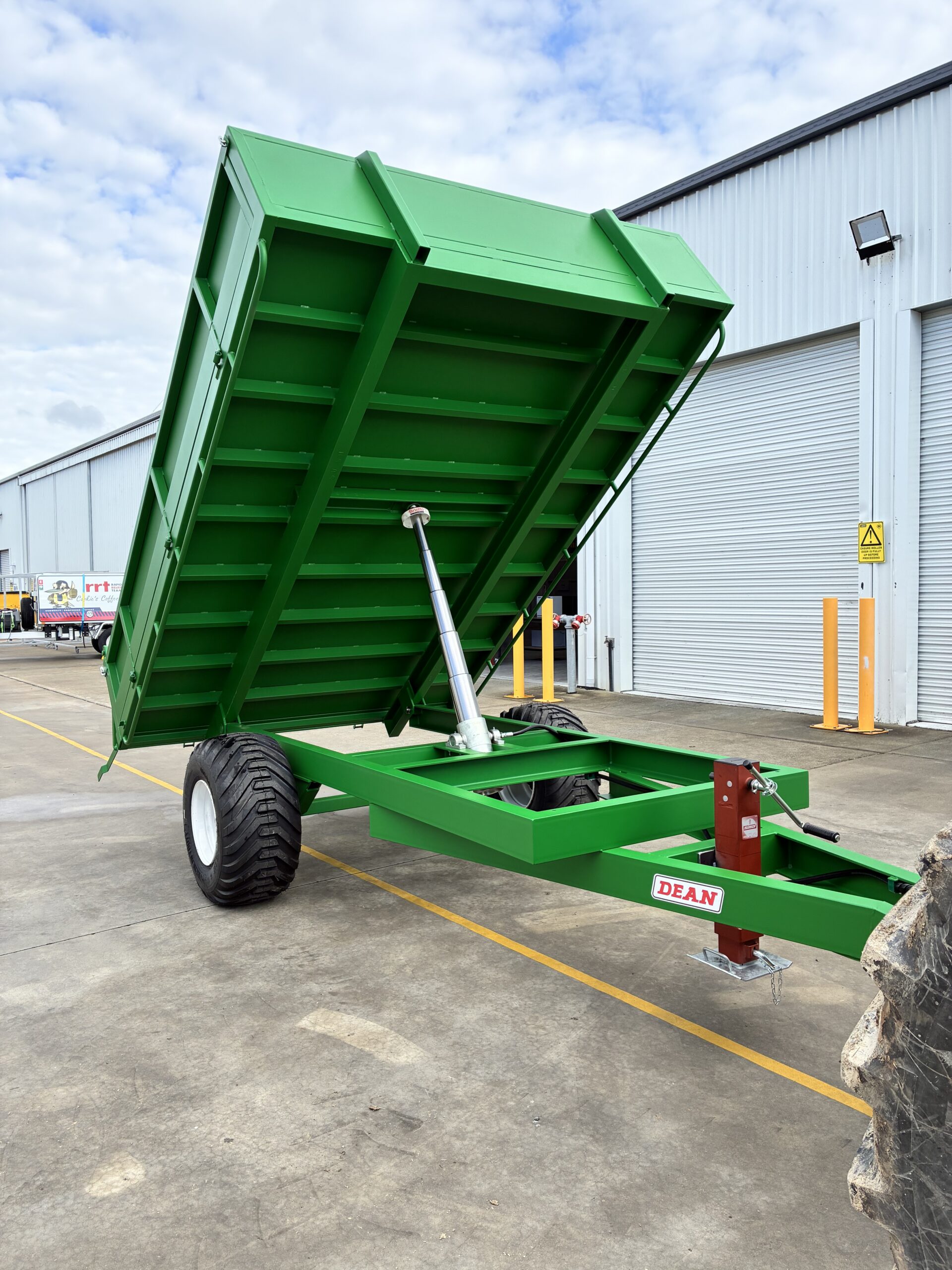

| Tipping mechanism: | Single acting multi 7 stage hydraulic ram run off tractor hydraulics |
| Sides: | Drop and removable |
| Tailgate: | Top and bottom hinged with manual lock. Removeable. |
| Tie down rails: | Tie-down points on all three sides |
| Axle: | 70mm Square, solid steel axle welded to chassis |
| Wheels: | 15.5 dia x 15.5” wide 6 stud 205 PCD |
| Tyres: | 400/60 - 15.5 x 18 ply Flotation tyres |
| Jockey stand: | Heavy duty 4.5T jackstand |
| Coupling: | 14.5t swivel ring |
| Heavy Duty Floor: | 3mm flat sheet floor construction |
| Brakes: | Unbraked |
| Finish: | Sand blasted, zinc primed and finished with a durable powder coat |
| Tray Length: | 3.6m (11.8ft) |
| Tray Width: | 2.4m (7.87ft) |
| Drawbar Length: | 1.5m (4.9ft) |
| Side Height: | 500mm |
| Payload: | 6000kg |
| ATM (Aggregate Trailer Mass): | 7500kg |
| Tare Weight: | 1500kg |
