All Trailers
Plant Trailers

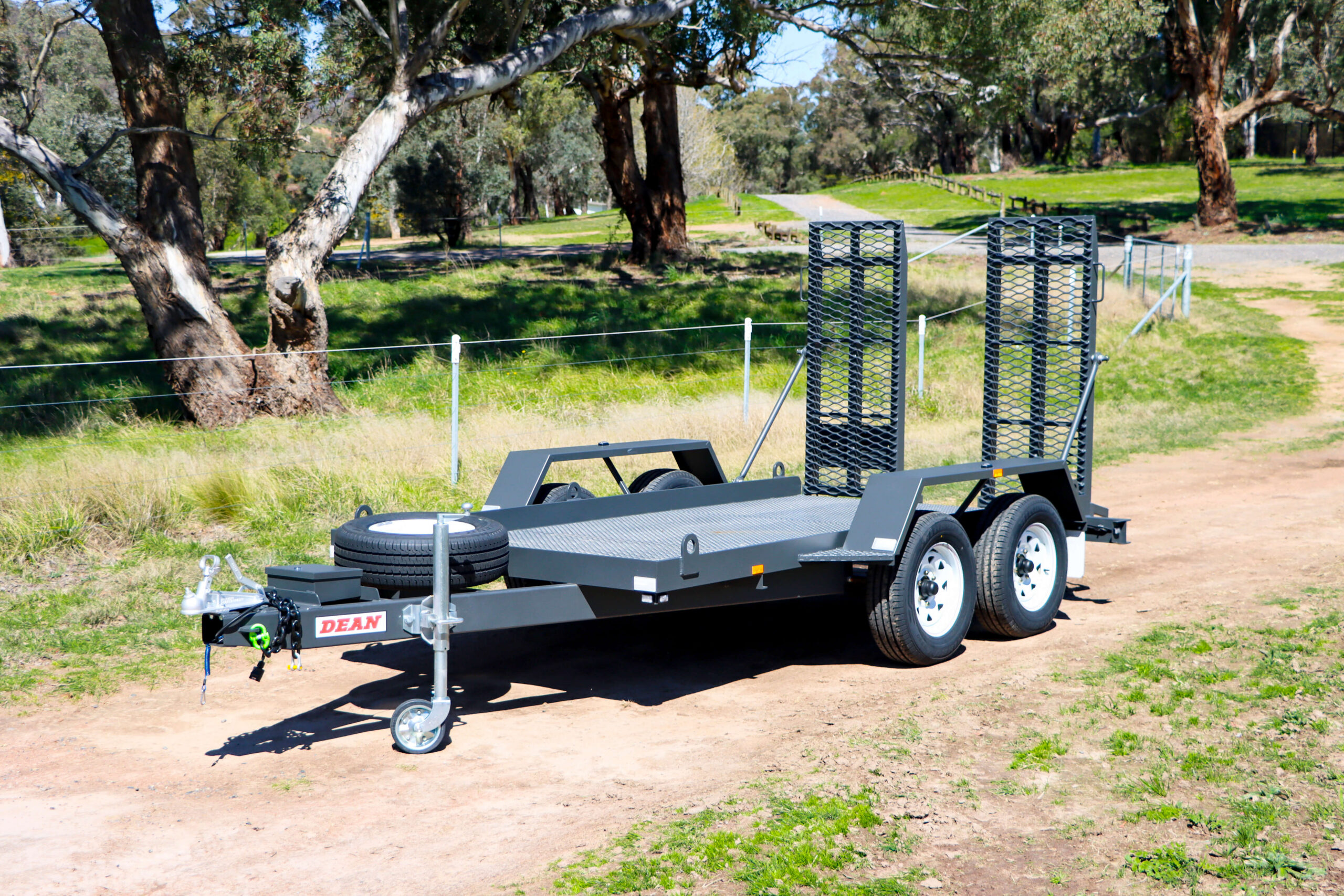

PT35
3.5T Plant Trailer | 10″ electric breakaway brakes | 3.8m x 1.9m (12.5’x6.2′) tray | Formerly known as the No.36 Tandem Axle Plant Transport Trailer
Get A Quote
View Specifications
More about PT35
Versatile Design
Providing a fit-for-purpose solution for a wide range of machinery.
Side Mounted Tie Down Points
Maximising deck space while reducing the risk of damage to tie-down points and
machinery during loading and transit.
Front Hurdle
Serving as a safety feature, stopping operators from overshooting the deck.
Easy to Use Ramps
Spring loaded ramps reducing manual effort, and increasing operational
efficiency. An option to upgrade to Aluminium Ramps.
Formerly known as the No.36 Tandem Axle Plant Transport Trailer
Specifications
Ramps:
Spring loaded grid mesh loading ramps
Tie down points:
8 x tie down rings, 4 welded down each side of tray
Suspension:
Rocker roller load sharing spring suspension
Wheels:
15 x 6 Landcruiser 6 stud
Tyres:
225/70R15C
Jockey wheel:
8 inch Jockey Wheel
Coupling:
Fixed 50mm ball with hand brake & safety chain
Lighting:
All LED multi-volt combination lamps
Electrical Connection:
Flat 7 pin plug
Brakes:
10 inch electric breaks with tandem breakaway unit
Spare Wheel & Tyre:
Mounted on trailer
Dimensions
Tray Length:
3.8m (12.5ft)
Tray Width:
1.9m (6.2ft)
Capacity
Payload:
2500kg
ATM (Aggregate Trailer Mass):
3500kg
Tare Weight:
1000kg
Trailer Options
Colour Choices
Available In all standard colours.
