All Trailers
Tilt Bed Trailers
TB22

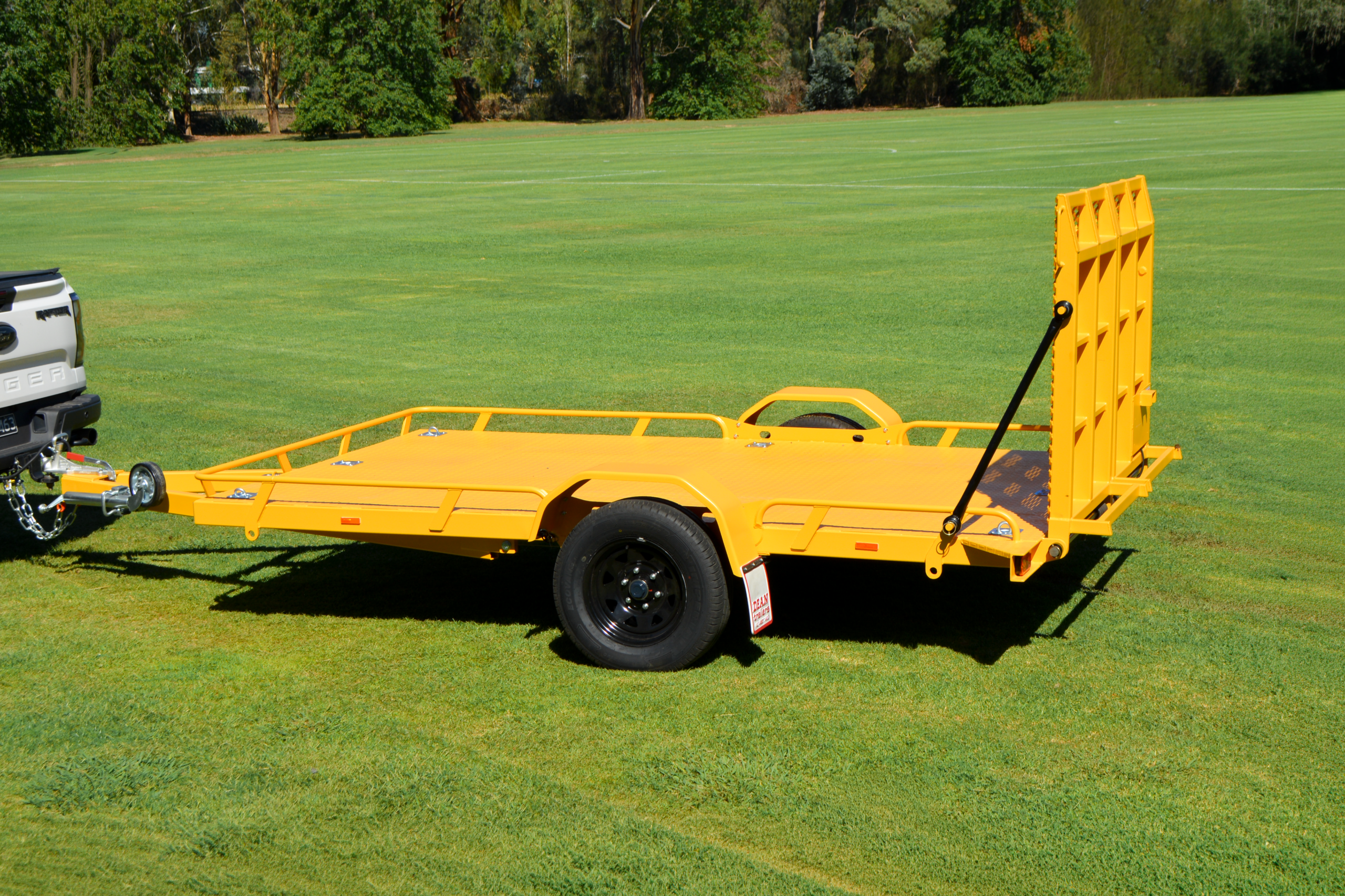

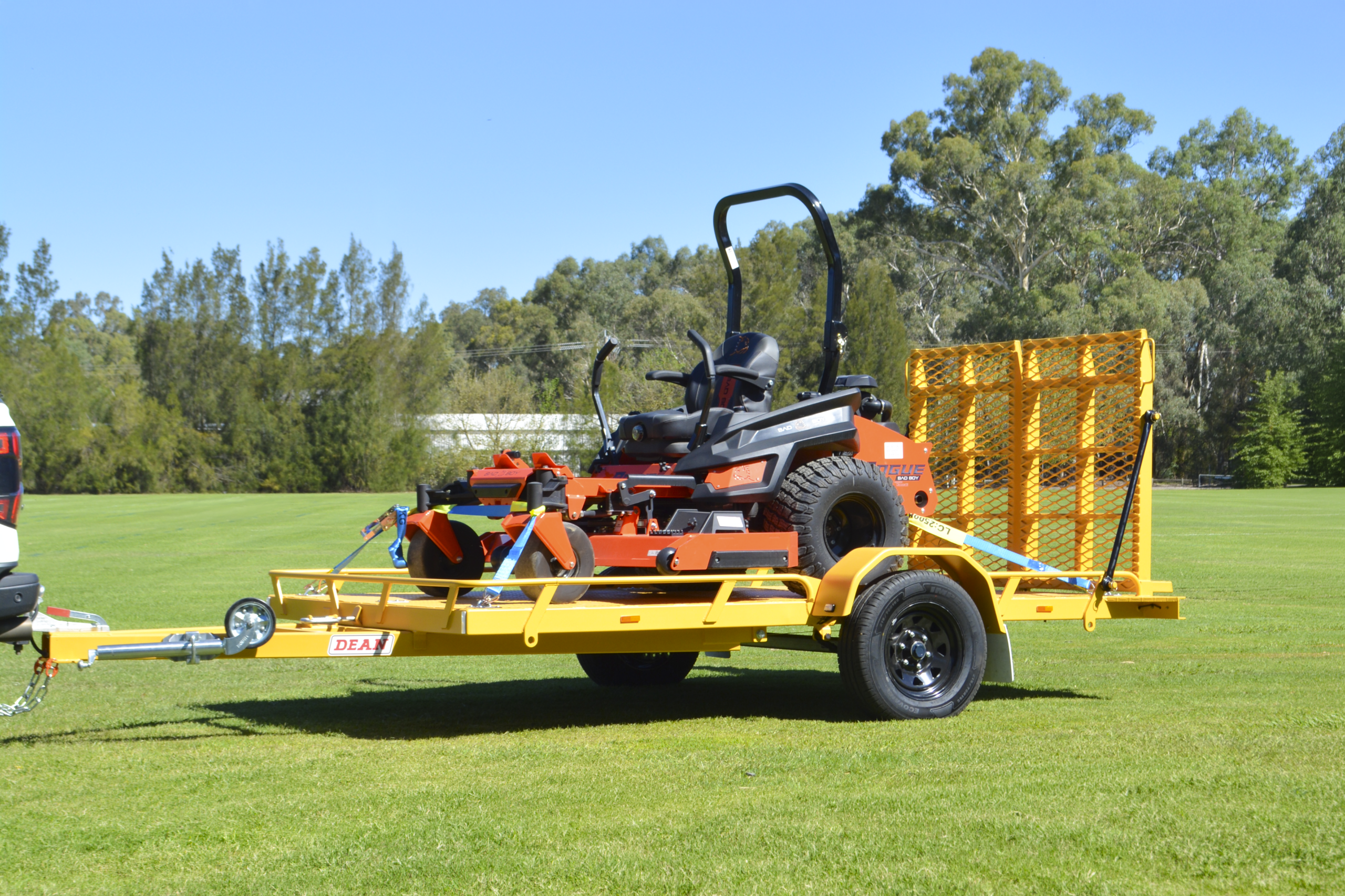

2.2T Tilt Bed Trailer | 12″ Electric Brakes | 3.5m x 2.03m (11.3’ x 6.66′) tray | Formerly known as No.17 Single Axle Tilt Bed Plant Trailer
Get A Quote
View Specifications
More about TB22
Full Width Ramp
To accommodate machinery with multiple track widths, versatile for multiple
machines, and suitable for three wheeled machines.
Wide Deck Design
With a 2030mm wide deck delivering maximum clear usable deck space,
enhancing stability and loading efficiency.
Tie Down Rail
Accommodating tie-down points on all three sides, to suit a variety of
machinery applications, and added safety feature.
Single Operator Friendly
Featuring a self-levelling deck for manual and efficient
loading.
Formerly known as No.17 Single Axle Tilt Bed Plant Trailer
Specifications
Tipping mechanism:
Self tilting bed with slam catch locking mechanism
Tie down rails:
Tie-down points on all three sides
Suspension:
Heavy duty 9 leaf spring suspension
Wheels:
15 x 6 Ford 5 stud
Tyres:
215/70R15C
Jockey wheel:
8 inch jockey wheel on a swivel mount
Coupling:
50mm electric coupling
Lighting:
Multi-volt LED
Electrical Connection:
Flat 7 pin plug
Brakes:
12 inch electric brakes
Dimensions
Overall Length:
5.00m
Overall Width:
2.49m
Tray Length:
3.50m (11.3ft)
Tray Width:
2.03m (6.66ft)
Capacity
Payload:
1450kg
ATM (Aggregate Trailer Mass):
2200kg
Tare Weight:
750kg
Trailer Options
Colour Choices
Available In all standard colours.
